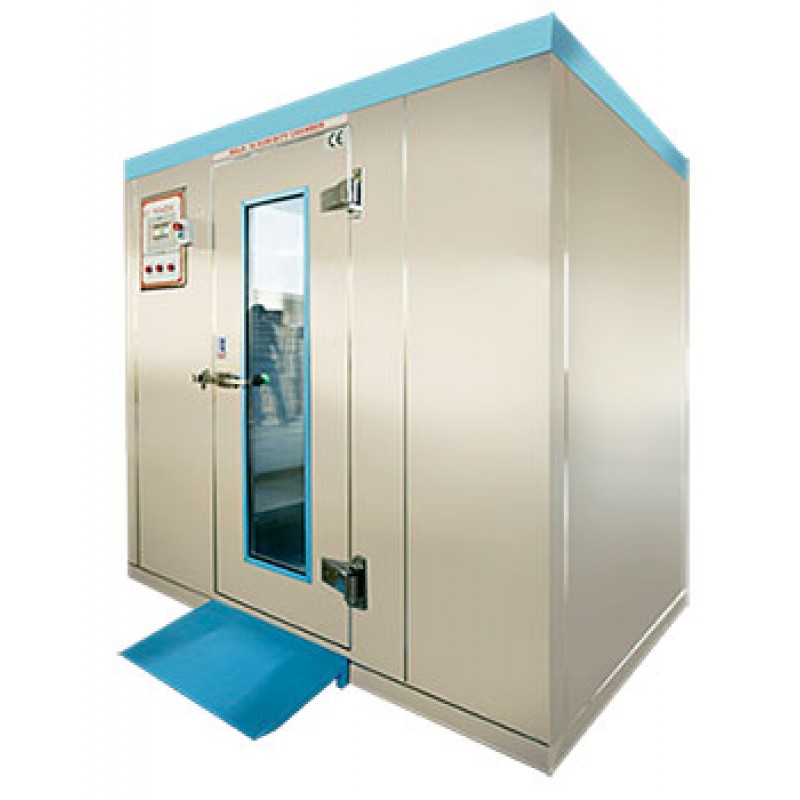

Walk In Humidity Chamber
Product Details:
Optional Features
- Hooter System
- GSM Technology
- Extra Wiremesh Type Trays
FEATURES
Construction
Chamber interior is fabricated of stainless steel with dull finish & exterior is of stainless steel / G.I. Powder coated. The inner working chamber is water & vapour tight high-grade stainless steel. All seams are arc-welded & passivated for strength & durability. Modular type prefabricated metal sectional panels are lightweight for easy handling and also fit through standard doorways, easily transported and assembled /disassembled for relocating the room.
Full View Glass Door
Full door is of toughened glass with polysulphide to view the samples without disturbing the test conditions & human safety.
Trays & Racks
Heavy duty solid stainless steel duly electro polished wiremesh type trays are provided which are easy to clean, time & effort saving, adjustable for convenience, along with detachable racks with adjustable angles.
Scanner
For Validation purpose Temp / Humidity multipoint Scanner can be provided with printer & PC interface facility.
21 CFR PART-11 Compliance
Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis& Data acquisition.
Stand by Refrigeration & Humidity System
Two steam generators and two water reserve tanks are provided. In case of any system failure or breakdown the stand by system is switched over automatically without disturbing the test condition.
Technical Specification | |
Temperature Range: | 20°C - 60 °C |
Humidity Range: | 40%RH - 95%RH |
Accuracy: | +0.2 °C / +2.0 % RH |
Uniformity: | +1.0 °C / +3.0 % RH |
Test suitable for: | 25°C & 60%RH, 30°C & 65%RH, |
40°C & 75%RH, 30°C & 75%RH | |
Specially designed chambers for Low Humidity conditions, such as 25°C & 40%RH, 40°C & 25%RH, 30°C & 35%RH.
| Models | MK*-WH600 | MK*-WH800 | MK*-WH1000 | MK*-WH1200 | MK*-WH1600 | MK*-WH1800 |
| Features | 6000 Ltrs | 8000 Ltrs | 10000 Ltrs | 12000 Ltrs | 16000 Ltrs | 18000 Ltrs |
| Interior Dimension | ||||||
| Width in mm | 2000 | 2000 | 2000 | 2000 | 2000 | 4000 |
| Depth in mm | 1500 | 2000 | 2500 | 3000 | 4000 | 3000 |
| Height in mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Exterior Dimension | ||||||
| Width in mm | 2160 | 2160 | 2160 | 2160 | 2160 | 4160 |
| Depth in mm | 2010 | 2510 | 3010 | 3510 | 4510 | 3510 |
| Height in mm | 2190 | 2190 | 2190 | 2190 | 2190 | 2190 |
| Racks and Trays | ||||||
| No of Racks | 4 | 4 | 6 | 6 | 8 | 10 |
| No of Trays | 20 | 20 | 30 | 30 | 40 | 50 |
| Trays Size in mm | 600 X 600 X 30 | 600 X 900 X 30 | 700 X 600 X 30 | 900 X 600 X 30 | 900 X 600 X 30 | 900 X 600 X 30 |
| Type | Wiremesh Type | |||||
| Power Supply | ||||||
| Power Supply | Three Phase, 440V 50Hz | |||||
| Power Rating | 7KW | 8KW | 8KW | 8KW | 9KW | 15KW |
| Warranty | 12 Months | |||||
