We hold expertise in Providing Pass Boxes that are designed to minimize traffic and contamination entering into clean room. Manufactured using quality material like Stainless Steel, these are based on the latest technology and easy to install. Pass Boxes offered by us is provide. U. V. Light, Flourcent Light & Hour Meter And Digital Inter Locking System.

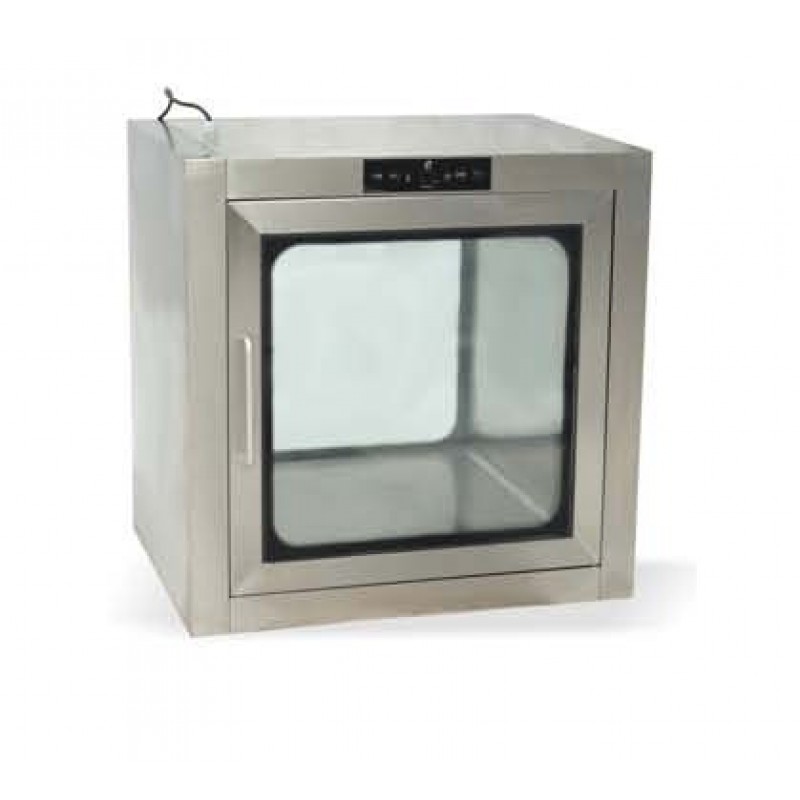

Patel Scientific Instruments Pvt Ltd presents its static pass box equipment,fabricated with
powder coated 304 / 316 grades stainless steel and high quality components and are capable of eradicating pollutants completely from the air. These static pass boxes are installed in manufacturing areas and filter the incoming air in order to keep the air free from dust and other contaminants. With UV light along with hour meter, Fluorescent light, buzzer indicator to know the material is kept inside and indicating lamp, these static pass boxes provide excellent working performance in the clean room unit.
Specifications:
- Product: Static Pass Box
- Construction: Stainless Steel 304 / 316 / 316L
- Door:Solid door w/ mechanical or electrical interlocked
- Window:Tempered Glass
- Accessories: Hour meter
- Electricals: Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps
- Window: Tempered Glass
- UV Lamp: Optional
- HEPA Filter:Optional
- Filtration efficiency: ≥ 99.99% @ ≥ 0.3μm
- Power Supply: 220 / 230 Volts
- Certifications: CE and ISO
Size |
18”X18”X18” |
24”X24”X24” |
