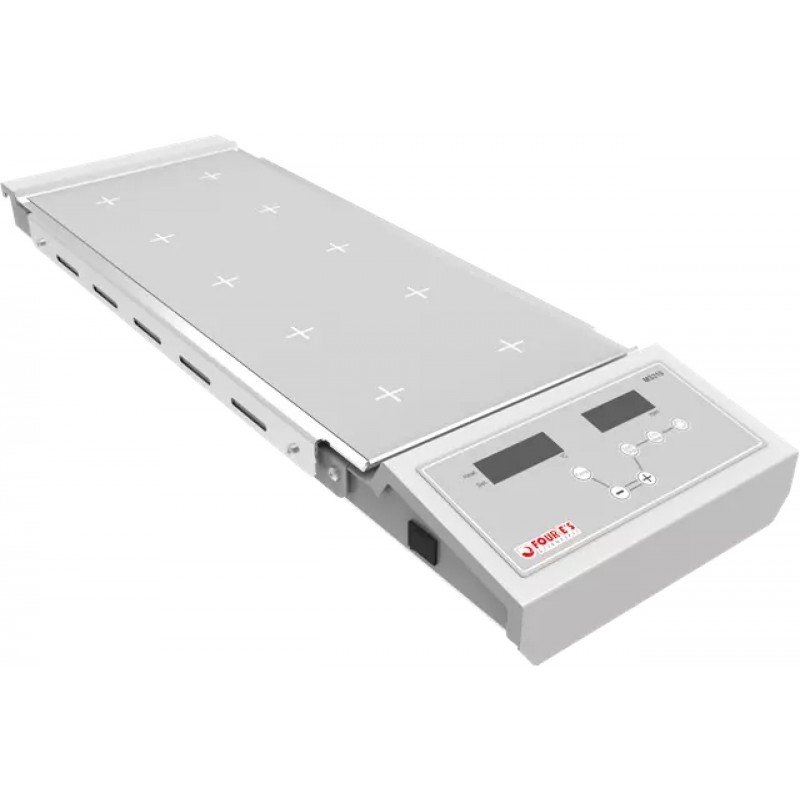

10-Position Magnetic Hotplate Stirrer

10-Position Magnetic Hotplate Stirrer

  • The 10-position Magnetic Hotplate Stirrer supports synchronous heating and stirring. The wear free magnetic coil technology provides noiseless and consistent stirring in all 10 positions. Stainless steel with silicone work plate is skid-resistant and allows excellent heating uniformity.
  • The equipment comes with an Economic mode function that lowers the work plate heating. Reverse rotation and error code display options are available.


Features:

● 10 positions supports synchronous heating and stirring

● Wear free magnetic coils and the magnetic coil technology provides noiseless and consistent stirring on all positions

● The max. heating temperature is 120°C and the sample temperature can be up to 70°C at maximum

● The max. speed is 1200rpm and the increment is 10rpm

● Economic mode can have the work plate automatic heating at low temperature

● Stainless steel with silicone work plate is skid-resistant and allows excellent heating uniformity

● Comes with Reverse Rotation option


Specifications :

Model

MS310

Stirring position

10

Work plate material

Stainless steel with silicone

Work plate dimension [L x W, mm]

470×205

Driving mode

Electromagnetic drive

Max. stirring quantity [L]

0.4 x 10

Heating temperature [℃]

Room temp. - 120

Safety temperature [℃]

150

Speed range [rpm]

0-1200

Speed increment [rpm]

10

Stirring position distance [mm]

93

Max. magnetic bar [L, mm]

30

Speed display

LED

Time display

LED

Economic mode

Yes

Adjustable Reverse rotation

Yes

Operation type

Continuous / timing operation

Time range

0-99h59min

Voltage [VAC]

100-120/200-240

Frequency [Hz]

50/60

Heating Power [W]

500

Power [W]

580

Permissible ambient temperature [℃]

5-40

Permissible relative humidity

80%

Protection class

IP30

Dimension [L x W x H, mm]

630x210x70

Weight [kg]

10
