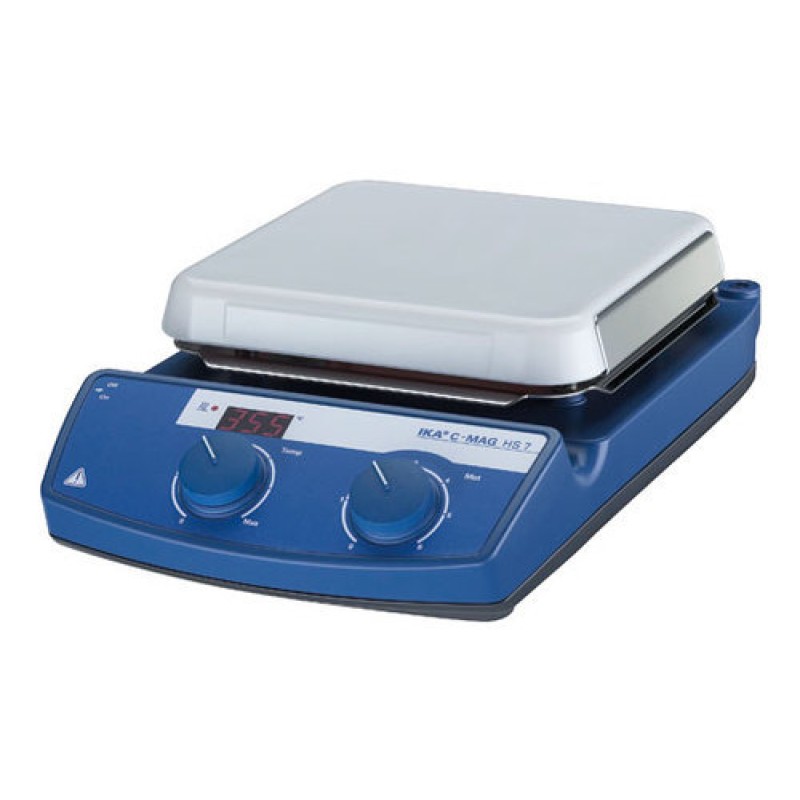

IKA Magnetic Stirrer CMAG HS7 Basic
Product Details :
| Minimum Order Quantity | 1 Pack |
| Material | CERAMIC |
| Capacity | 10 Liters |
| Color | White and Blue |
| Speed range [Rpm | 100-1500 |
| Features | Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance. |
| Phase | 1 |
| Operating Voltage | 230 |
| Warranty | 2 years |
| Temperature Range | 50 - 500 |
| Shape | Square Plate |
| Size | 180 x 180 mm Ceramic Plate |
| Maximum Temperature | 550 |
| Protection Class | IP 21 |
| Stirring Positions | 1 |
| Temperature Control Accuracy With External Temperature Probe | Yes |
| Timer | No |
| Model No. | CMAG HS7 |
| Brand | IKA |
| Heating Power W | 1000 |
- C-MAG HS 7 Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 10 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
- Also available in Package with ETS-D5 Sensor seperately.
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 10 l |
| Motor rating output | 1.5 W |
| Direction of rotation | left |
| Speed control | scale 0 - 6 |
| Speed range | 100 - 1500 rpm |
| Stirring bar length max. | 80 mm |
| Heat output | 1000 W |
| Heating temperature range | 50 - 500 °C |
| Heat control | LED |
| Heating rate heating plate | 5 K/min |
| Connection for ext. temperature sensor | ETS-D5 |
| Fixed safety circuit | 550 °C |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 180 x 180 mm |
| Dimensions (W x H x D) | 220 x 105 x 330 mm |
| Weight | 5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 / 120 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
