Study Of Switching Action Of A Transistor (BJT)

Power	AC Mains
Usage/Application	Laboratory
Model Name/Number	AE 261
Type	Analog
Material	Plastic
Color	Gray
Power Supply	AC Mains

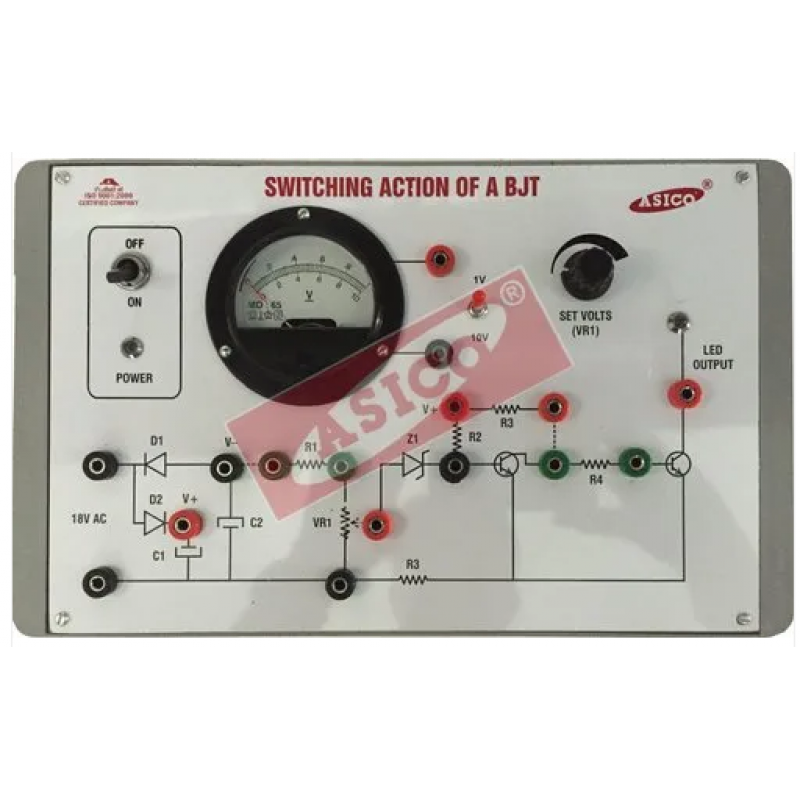

Study of Switching action of a transistor(BJT) (AE 261 )

Objective: Switchingcircuits using transistors has been designed to study the switching action of a transistor.

Features: Instrument comprises of fixed power supply of +/-18 V, one dual range volt meter and important connections are brought out on 4mm sockets.
