Sunlite Solar Simulators
Product Details:
Cost effective and full featured
Gen III Optics for High Efficiency Illuminati
Infinitely Adjustable Irradiance, Reproducibly Settable
Class A AM1.5G Spectral Match
ASTM Class A stability
50×50 mm Class B uniformity
Manual Shutter Included, Electronic Shutter Optional
Uninterrupted testing with the prealigned lamps
HEPA filtered air cooling
More Features, Lower Price

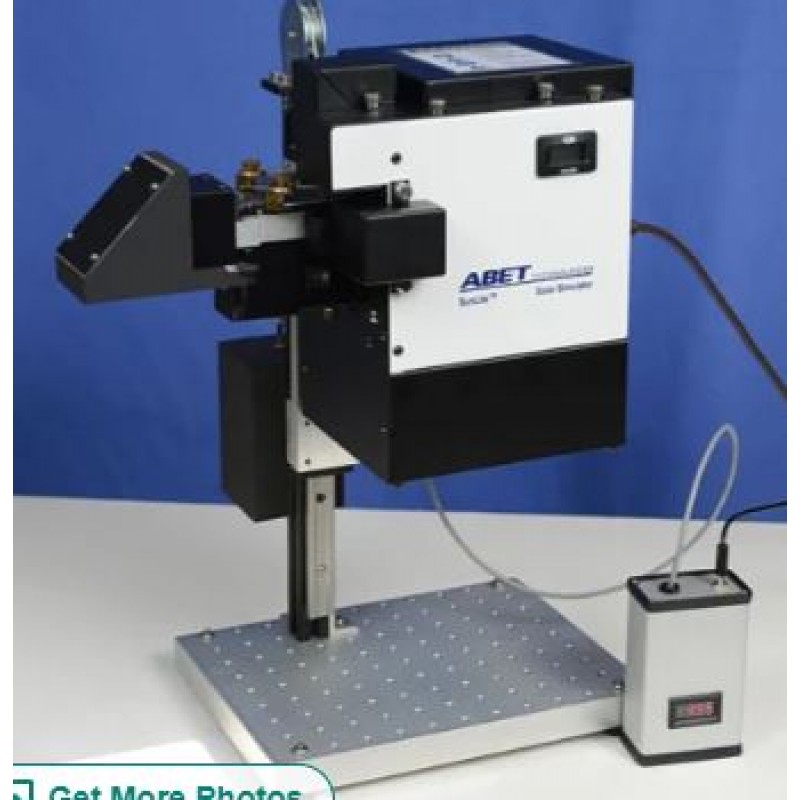

Abet Technologies’ model 11002 SunLiteTM Solar Simulators set a new standard for 50×50 mm field solar simulators using only a 100 W Xe arc lamp. A wide range of reproducible irradiance settings is made possible by the available attenuation option. Highly stable long term and short term output allows for reproducible metrology.
Long term (over 1000 hrs) and short term (0.5 sec) stability of the 11002 SunLiteTM Solar Simulator.
Innovative Optical Design
The 11002 SunLiteTM Solar Simulator utilizes an optimized optical system to deliver more than one AM1.5G sun irradiance over a 50×50 mm area utilizing only a 100 W Xe arc lamp. For test needs at other than one sun conditions order the attenuation option offering a wide and reproducible range of irradiance control.
Adaptable System Configuration
The 11002 SunLiteTM Solar Simulator offers a flexible design that can be adapted to many particular needs. Standard configuration is a downward output system with an AM 1.5G filter included which is easily converted to a horizontal or up pointing output system using only a screwdriver. The long working distance design makes it highly compatible with glove box based test needs.
Complete test solutions
Combine the SunLiteTM Solar Simulator with one of Abet Technologies’ many test stations to match DSSC, Perovskite, Silicon, Thin Film, or numerous other solar cell materials. For standards compliant PV IV metrology add the TracerTM hardware control and data analysis software and one of the full featured 15150 family or the low cost 15151 calibrated reference cells. Temperature control and vacuum pumps are available as needed.
Available Options
Add the Model 15278 electronic shutter option to allow computer control for light soaking and timed irradiance.
Add the 15279 continuously adjustable height stand with electronic readout for infinite resolution, reproducible irradiance control.
Typical attenuation behavior of the 11002 SunLiteTM Solar Simulator using the model 15279 option.
