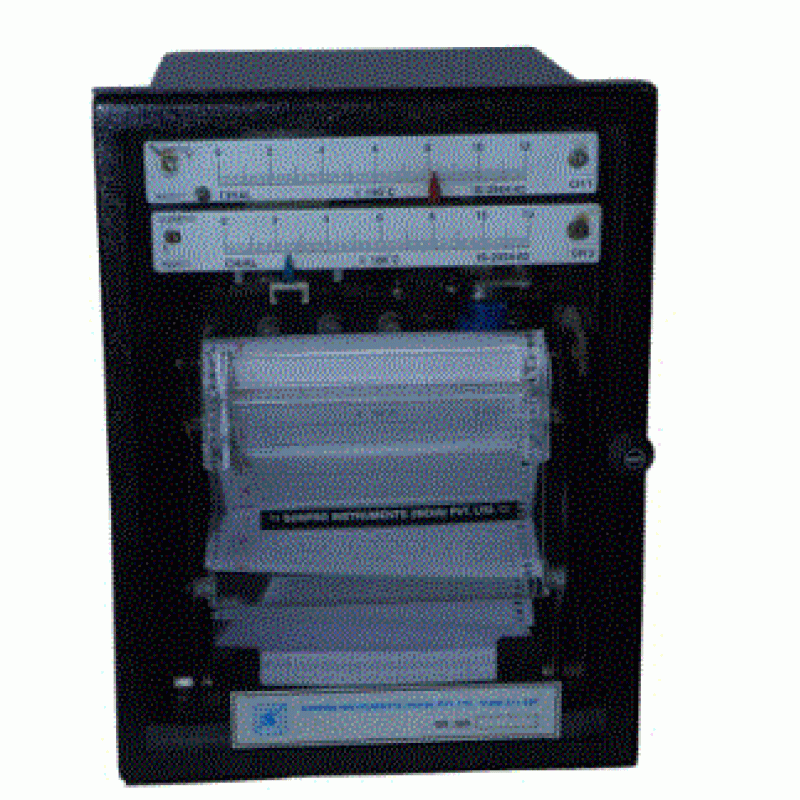

Sunpro Potentiometric Strip Chart Recorder
Product Details:

Consumption	25 to 50 VA
Temperature	-10 to 50 degree C
Humidity	0 to 80% RH
Weight	5 to 10 kg
Response Time	1 sec
Housing	MS Enclosure with Powder Coated Black colored
Front Door	Transparent Acrylic Sheet
Back Connector	Screw Terminal Block

We are engaged in offering our prestigious clients a very highly premium quality range of SunproPotentiometric Strip Chart Recorder. Our range is known for its excellent quality and finest results. Our range is available at market's leading prices..
Features:
Make Sunpro
Highly precise Sealed Potentiometer as a feedback element
Highly Precise & Accurate Synchronous or Stepper motors
Predefined Input signal K, J, R, S, T Thermocouples, DC mA, DC mV, RTD (Length compensated)
Accuracy Level 0.5 % FSD
Chart Speed 15/30/60/120/240/480 & 960mm/Hr selectable (Stepper motor) or fixed speed predefined 20/60/120/1200mm/Hr one of it (Synchronous motor). Range selectable through span-zero adjustment by source
Power Supply 110 VAC / 240 AC 50 Hz (Predefined) Chart fan fold type
Predefined built in indicator or controller single set point
Straight line recorder having pointer, writing pen on one carriage for better
Response and accuracy
Strip chart writing widths 100 mm, 120 mm, 180 mm & 250 mm
Easily replaceable & disposable fiber tip Pen
Time Vs Process value continuous/dotted line Graph
