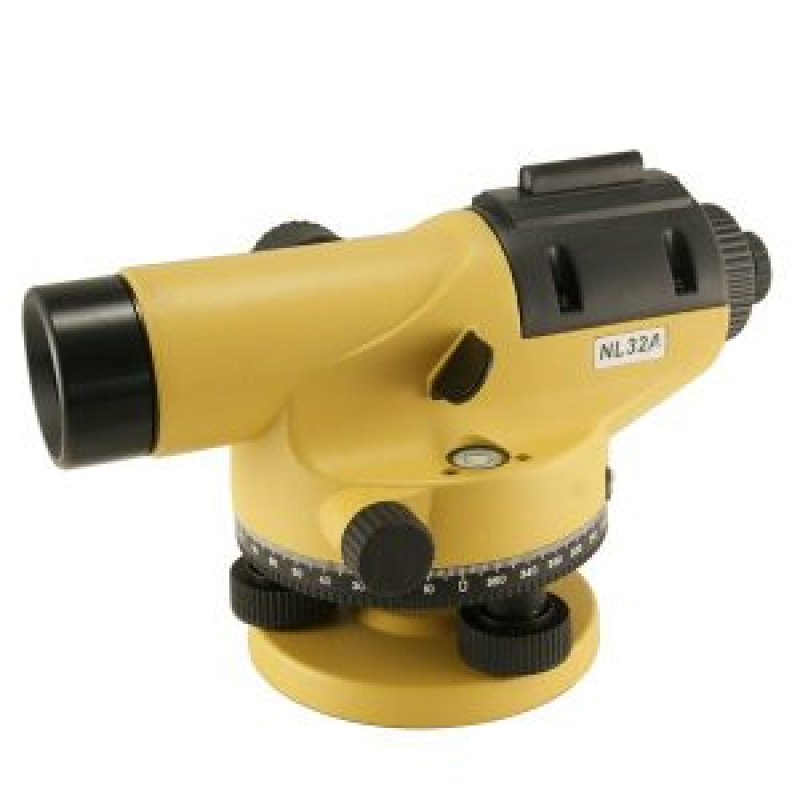

Automatic Level

Features:

  • Chinese patent, excellent shockproof function
  • Excellent sealed structure for using in any weather
  • Exclusive closed magnetic field, magnetically-dampened compensator
  • Friction-braked rotation and endless horizontal drive
  • Prism for viewing circular vial


Specifications:

  • Standard Deviation for 1km Double Run Leveling: 1.0mm
  • Image: Erect
  • Magnification: 32X
  • Objective Aperture: 38mm
  • Field of View: 1°20′
  • Minimum Focus: 0.5m
  • Multiplication Constant: 100
  • Additive Constant: 0
  • Compensator Range: +/-15′
  • Compensator Setting Accuracy: +/-0.6″
  • Sensitivity of Bubble: 8’/2mm
  • Horiz.Circle-reading: 1°or 1 gon
