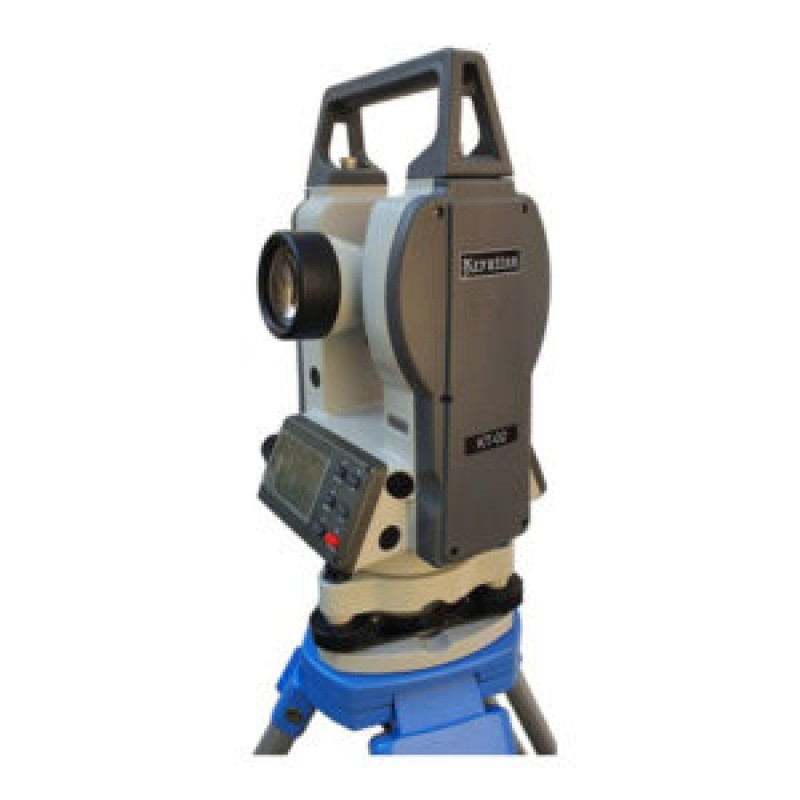

Kryptton KT 02 Digital Theodolite
Product Details:
The Kryptton KT 02 Digital Theodolite is designed for enhanced reliability in construction applications. Its advanced features let contractors work faster and longer, improving productivity and increasing profitability.
With vertical compensation and 2″ accuracy, the Kryptton Digital Theodolite KT-02 provides you with the precision required for your most demanding jobs for an affordable price without adding complexity. Various display modes, hold and set zero for horizontal angle, a variation of measurement units, simple distance measurement via stadia lines combined with six function keys guarantee ease to use. The visible laser plummet enables you to set up over a point faster and easier than ever. The Kryptton KT 02 Digital Theodolite is the tool of your choice when it comes to checking angles, alignments, grade work, and short-range leveling.
2-second accuracy – High accuracy for tight tolerances
Automatic vertical compensation – A tilt warning occurs if out of compensation range, preventing costly errors
Visible laser plummet – a Makes setting over a point a snap — much faster & easier than optical plummets
Precision dual LCD panels with large, easy-to-read numbers
Zero resetting – Instantly resets the horizontal angle to zero
The Kryptton KT-02 includes both rechargeable and alkaline battery options
SPECIFICATION
Model            Kryptton KT-02
Precision                    2”
Display resolution 1” or 5”
Display units         DEG (360° 00’ 00”), GON (400), MIL (6400), V / %
Telescope
Magnification                30x
Objective aperture        45 mm (1.7 in)
Minimum focusing distance   1.35 m (4.43 ft)
Stadia multiplication factor/constant 100/0
Compensator
System                 Automatic vertical compensator, User set On/Off
Working Range      ± 3’
Operation
Display               Double side large character back-lit LCD
Keys  6                      one-touch button functions
Laser                          plummet
Type                      Visible laser point
Accuracy               1.5 mm at 1.5 m instrument height
Environmental conditions
Protection to dust and water dust and water-resistant
Weight
Weight including battery and tribrach    4.6 kg (9.9 lb)
Battery/Power management
Type of battery                       Rechargeable NiMH, replacement alkaline battery pack
Operation period without laser plummet  36 h
FEATURES

Kryptton theodolite is a new generation technical equipment for measuring both horizontal and vertical angles, It is a key instrument for land surveying and civil engineering work. The electronic theodolite consists of a telescope movable within two perpendicular axes – the horizontal axis, and the vertical axis. When the telescope is pointed at the desired object, the angle of each of these axes can be measured very precisely.

Enhanced Reliability

• 2’’ horizontal and vertical readout
• Precision dual LCD panels with large, easy-to-read numbers
• Vertical angle measuring provides three different options plus percentage of grade

Easy-to-read & easy-to-use

• Auto Power Off optionmet


• Laser pluming

• Zero resetting
• Removable tribrach for multiple set-up

Audible right-angle notification

Once the (0) horizontal angle is determined, the Kryptton KT-02 emits an audible tone for each of the right angle directions

• Beeping stops when the units comes within +/– 1°

• Rugged IP54 protection

• Water resistant, sealed construction

• One year warranty
