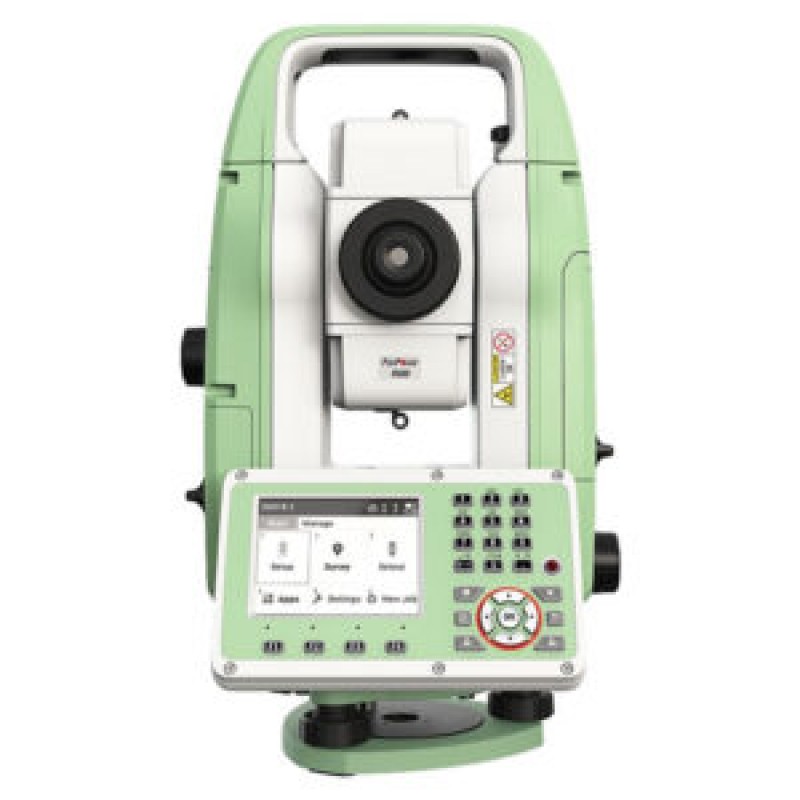

Leica Flexline TS07 Total Station
Product Details:
The Leica FlexLine TS07 high-quality, manual total station is based on a proven product concept that has been revolutionizing the world of measurement and survey for nearly 200 years. The instrument is equipped with a comprehensive application-based software package – Leica FlexField software – that enables most surveys and stakeout tasks to be carried out easily and efficiently. The new FlexLine manual total stations work reliably and deliver accurate results even in harsh environments.
Features
- 1″, 2″, 3″, 5″ & 7″ angular accuracy
- 1.5m to 3500m Single Prism Range
- Prism GPR1 (Long Range mode) > 10.000 m
- R500 EDM – 500m Reflectorless & R1000 EDM – 1000m Reflectorless Optional
- 2 GB Internal Memory Approx 100,000 Points
- USB Memory Stick & SD Memory Card support
- 3.5″, 320 x 240px QVGA, color, touch, and full alpha numeric keyboard
- Quadruple Axis Compensation, IP66 Protection, Laser Plummet for Centering
SPECIFICATION
Leica FlexLine TS07
ANGULAR MEASUREMENT
Accuracy Hz and V Absolute, continuous, diametrical 1’’ / 2’’ / 3’’ / 5’’ / 7“ - Display resolution: 0.1″ (0.1 mgon)
- Quadruple axis compensation
- Compensator setting accuracy: 0.5″’ / 1″/ 1.5″ / 2″
- Compensator range: +/- 3.78′ (+/- 0.07gon)
- Electronic level resolution: 2″
- Circular level sensitivity: 6′ / 2mm yes
DISTANCE MEASUREMENT
Range - Prism (GPR1, GPH1P): 1.5m to 3.500m
- Prism GPR1 (Long Range mode) > 10.000m yes
Non-Prism / Any surface
R500 yes
R1000 optional
Accuracy / Measurement time Single prism - Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
- Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)
- Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
- Averaging: 1mm + 1.5ppm
- Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s) yes
Non-Prism / Any surface - 0 m – 500m: 2mm + 2ppm (typical 3-6s)
- > 500m: 4mm + 2ppm (typical 3-6s) yes
Laser dot size
- At 30m: 7mm x 10mm
- At 50m: 8mm x 20mm
- At 100m: 16mm x 25mm yes
Telescope - Magnification: 30x
- Resolving power: 3″
- range: 1.55m / 5.08ft to infinity
- Field of view: 1°30′ / 1.66gon / 2.7m at 100m yes
GENERAL
Display and keyboard 3.5″, 320 x 240 px QVGA, color, touch, 28 keys5b
2nd keyboard optional
Key illumination yes
Operation - Endless drives for HZ & V
- Trigger-Key: user-definable with 2 functions yes
Power management Exchangeable Lithium-Ion battery
Operating time with GEB361 up to 30h
Operating time with GEB331 up to 15h
Battery charging time with
GKL341 charger for GEB361 / GEB331 3h 30min / 3h
GKL311 charger for GEB361 / GEB331 6h 30min / 3h 30min
Data storage - Internal memory: 2GB Flash
- Memory card: SD card 1GB or 8GB
- USB memory stick: 1GB yes
Processor
TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
Operating system – Windows EC7 yes
Interfaces RS2327, USB device yes
Bluetooth®8, WLAN9 yes
Mobile Data side cover: LTE-Modem for internet access optional
Guide Light (EGL) - Working range: 5m to 150m
- Position accuracy: 5cm at 100m
- Wavelength red /orange: 617nm / 593nm yes
(R1000)
Laser plummet
(Laser class 2) Accuracy - Plumb line deviation: 1.5mm at 1.5m instrument height
- The diameter of laser point: 2.5mm at 1.5m instrument height yes
AutoHeight module for automatic instrument height measurement (Laser class 2) Accuracy - Distance accuracy: 1.0mm @ 1m
- Distance range: 0.7m to 2.7m
optional
Weight 4.3 – 4.5kg
Environmental specifications Working temperature range: –20°C to +50°C yes
Arctic version: –35°C to +50°C yes - FEATURES
Leica FlexLine TS07 is a manual total station, enabling you to carry out mid-to high-accuracy surveys and stakeout tasks easily and efficiently.
Building construction, civil engineering, or surveying and mapping professionals benefit from the Flexline TS07 helping them solve their daily professional challenges and tasks:
Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
Surveyors work faster by measuring more points per day with fewer measurement errors and rework.
Leica FlexLine: The new generation of manual total stations
The new Leica FlexLine series is based on a proven product concept, revolutionizing the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.
AutoHeight: Revolutionising instrument height measurement
The Leica TS 07 offers the world’s first AutoHeight feature as an option. AutoHeight enables the instrument to automatically measure, read and set its instrument height. Prevent time-consuming manual effort and eliminate critical errors during the instrument setup when this revolutionary feature uses a laser from the instrument to measure to the ground and automatically passes the measurement to the software.
Leica FlexField software: Comprehensive, intuitive, and easy to use
The Leica Flexline TS 07 Total Station is equipped with the Leica FlexField software, an intuitive, easy-to-use and familiar software. Guided workflows and easy-to-understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure both prisms and any surfaces.
The Leica FlexLine TS07 Reflectorless Manual Total Station is high-quality surveying equipment that is used for efficient and convenient survey, stakeout, and area investigation applications. Offering a reflectorless range of up to 1,640 feet (500 m) with the R500 EDM, this manual total station also measures a reflectorless range of up to 3,280 feet (1,000 m) with the R1000 EDM and range up to 11,483 feet (3,500 m) with a single prism. It also uses the Leica FlexField software which generates stable and accurate results in any environment.
This Leica FlexLine total station has a quadruple axis compensation which combines the Hz collimation and V-index correction. Equipped with a USB stick and SD card interface, this reflectorless total station accommodates an internal flash memory of 2GB and a 1GB SD RAM. Also, the TS07 also boasts WLAN (wireless local area network) and Bluetooth connectivity for easy on-site device communication. Plus, it uses a Laser class 2 laser plummet and an optional guide light for setting out.
The FlexLine TS07 Leica total station flaunts a 3.5-inch colored touchscreen LCD display with one illuminated keyboard. There is also an option of a second keyboard for more convenience. It features an IP66 rating which protects the instrument from dust and water. This total station uses exchangeable Li-ion batteries that power the device for up to 30 hours. In addition, the TS 07 total station can automatically measure, read, and set the instrument height with the optional AutoHeight feature to minimize errors and deliver a faster setup process.
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing yes
Military Standard 810G, Method 506.5 yes
