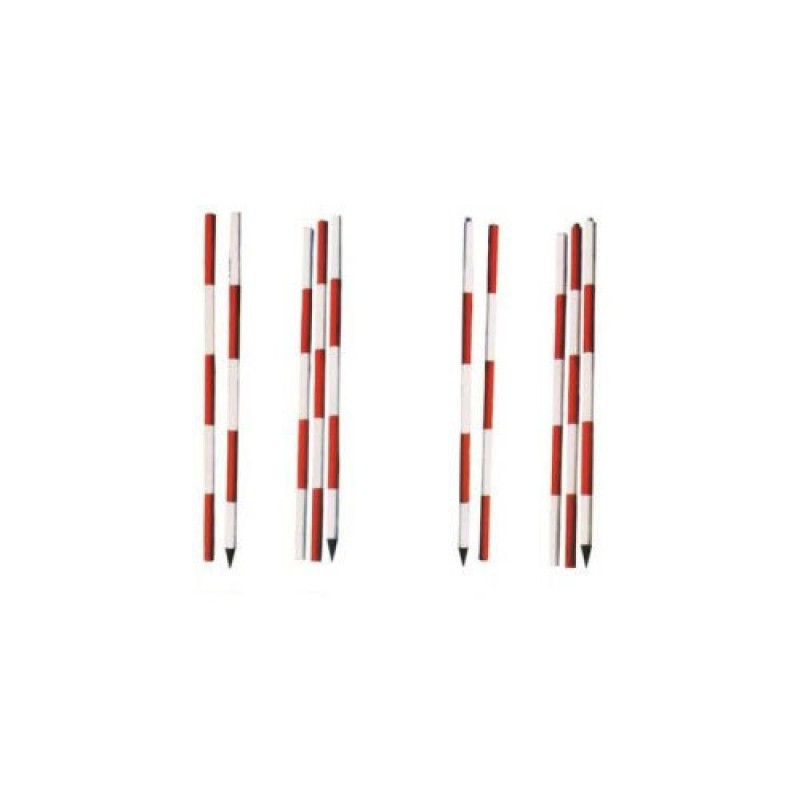

Ranging Rod
Product Details :
Brand | National Instruments |
Thickness | 1.5mm |
Length | 2-3mtr |
Diameter | 25mm |
We provide Ranging Rod that made of steel conduct pipe of 25mm dia.Alternatively painted international orange & white. Fitted with strong iron shoe at the bottom.
Sizes Available:
(a) Size 2 meter single
(b) Size 3 meter single
(c) Size 2 meter 2 fold
(d)Size 3 meter 3 fold
Technical data:
| Length | Extended | Nos. of | Diameter | Thickness of | Weight | Package |
Model | Per Sec. | Length | Sect. | of the Sect. | the Sect. | (Approx) | (Pcs. per |
| (Mtr) | (Mtr) |
| (mm) | (mm) | (Kg.) | Carton) |
R-1 | 1 | 2 | 2 | 25 | 1.5 | 0.750 | 10 |
R-2 | 1 | 3 | 3 | 25 | 1.5 | 1.150 | 10 |
R-3 | 1 | 2 | 2 | 25 | 1.5 | 1.250 | 10 |
R-4 | 1 | 3 | 3 | 25 | 1.5 | 1.650 | 10 |
R-5 | 1 | 2 | 2 | 31 | 1.5 | 1.150 | 10 |
R-6 | 1 | 3 | 3 | 31 | 1.5 | 1.700 | 10 |
R-7 | 1 | 2 | 2 | 31 | 1.5 | 1.900 | 10 |
R-8 | 1 | 3 | 3 | 31 | 1.5 | 2.500 | 10 |
