Slump Cone Apparatus

Product Details :

It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38mm.

Salient Features

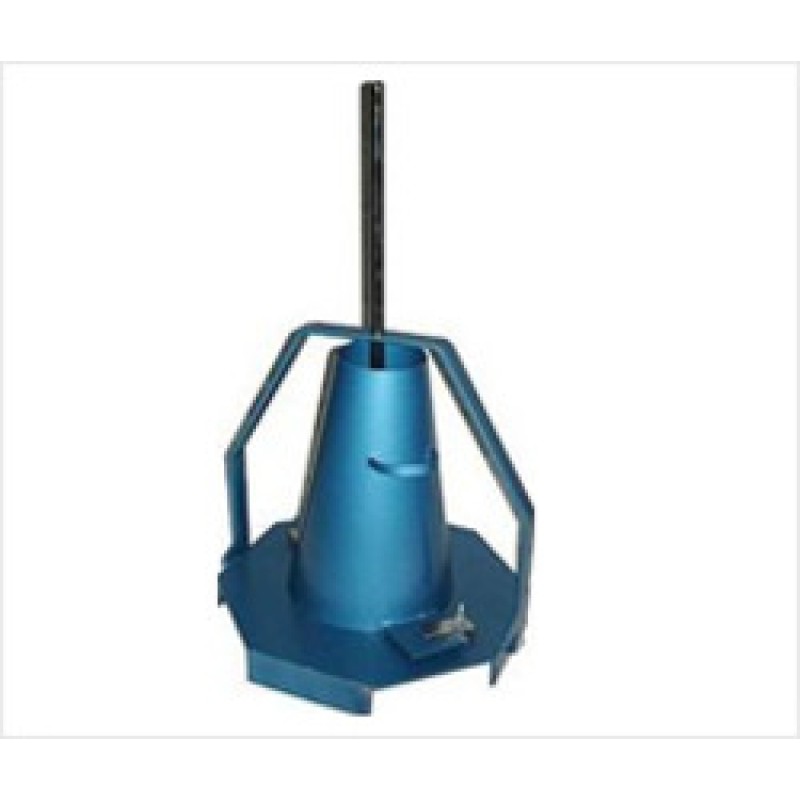

Specifications : The Apparatus consists of one slump cone with handles and foot pieces. The slump cone has internal dimensions 20cm. dia at base 10cm. top dia. and 30cm height. Foot pieces can be fixed to the clamps on the base plate. The base plate has lifting handle for easy transportation. One graduated steel rod 16mm dia x 600mm long, rounded at one end and graduated in mms, is also supplied.
