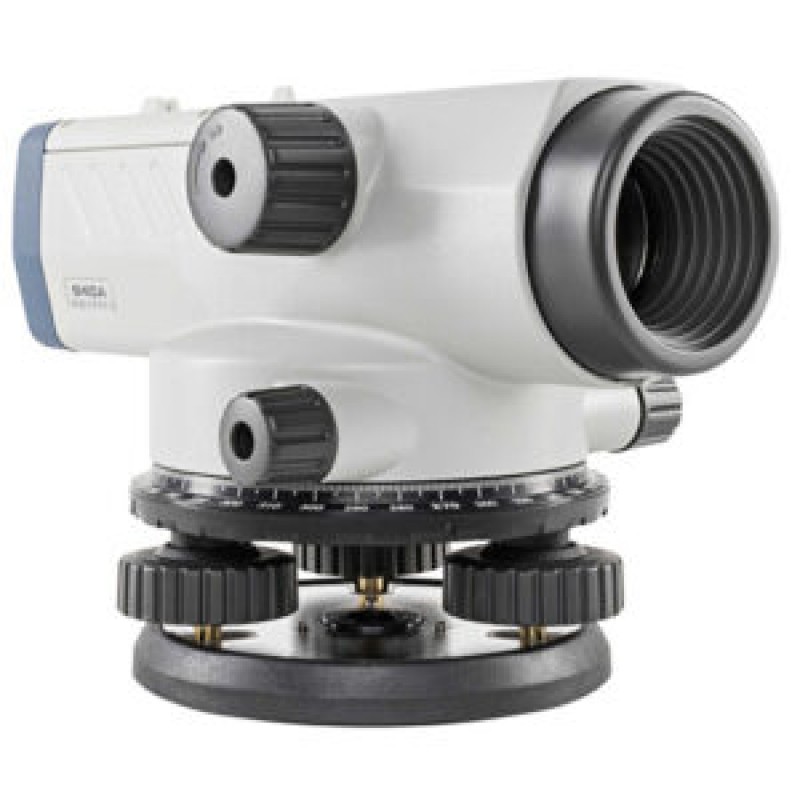

Sokkia B40A Auto Level

Product Details:

The Sokkia B40A automatic level incorporates field-proven precise and reliable compensators for accuracy you can rely upon. The optimally designed telescope provides an exceptionally bright and sharp view that reduces the operator’s eye strain. Quick collimation and horizontal angle measurement combine for fast and easy aiming of layout and alignment tasks.

SOKKIA QUALITY

Ultimate Environmental Performance and Durability

SOKKIA has been performing environmental tests against a set of expected job site conditions to certify the products for long-term use. The B Series has been tested by special inspection equipment for complete waterproofness. The B Series also has the highest environmental performance and durability in SOKKIA’s Auto Level history, proven by tests against temperature, humidity, vibration, and drop.

Water Proof Test (IPX6)

The B Series is proven to withstand powerful water jets from all directions without any submergence inside the unit.

Cold and Heat Resistance Test

The B Series has passed operating temperature tests from -20 to +50 degrees.

SPECIFICATION

Durability Test

The B Series has passed strict durability tests

Model Sokkia B40A

Telescope

Length 214mm (8.42in.)

Magnification 24x

Objective Aperture 32mm (1.26 in.)

Resolving Power 4″

Field of View

(at 100m/328ft.) 1°25’ (2.5m / 8.2ft.)

Minimum Focus 0.2m (7.9 in.) from the end of the telescope

0.3m (1ft.) from instrument center

Image Erect

Stadia Constant 0

Stadia Ratio 100

Focusing Knob 1-speed

Sighting Aid Gun Sight

Accuracy (1km double-run leveling)

Without Micrometer 2.0mm (0.08 in.)

With Micrometer n/a

Compensator

Type Pendulum compensator with magnetic damping system

Setting Accuracy 0.5″

Working Range ±15′

Circular Level

Sensitivity 10′ / 2mm

Horizontal Circle

Diameter 99mm (3.9in.)

Minimum Division 1°/ 1gon

General

Water Resistance IPX6 (IEC 60529:2001)

Operating Temperature -20 to +50ºC (-4 to +122°F)

Size Width x Length x Height 122mm (4.8in.) x 214mm (8.4in.) x 140mm (5.51in.)

Weight 1.5kg (3.3lbs.)ncluding rotation of the leveling foot screw, Focusing knob, and Horizontal fine motor screw.

FEATURES

Key Features of Sokkia B40A Automatic Level

Rapid, Stable, and Durable Compensator

The compensator of the Sokkia B40A Optical Level incorporates four suspension wires made of super-high-tensile metal that features a minimal thermal expansion coefficient, providing unmatched durability and accuracy. A finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.

20cm (7.9 in.) – Ultra-Short Minimum Focus

Sokkia Auto Level  B40A can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces.

Horizontal Circle for Angle Measurement

Horizontal angles can be directly read in 1° or 1gon units. The free rotation feature allows you to read any angle from zero.

All-Weather Dependability

With the IPX6 rating, the instrument is protected against powerful water jets from all directions, meaning Sokkia Level B40A withstands a sudden shower or torrential rainfall.

The advanced protection design also deters clouding or condensation inside the telescope.
