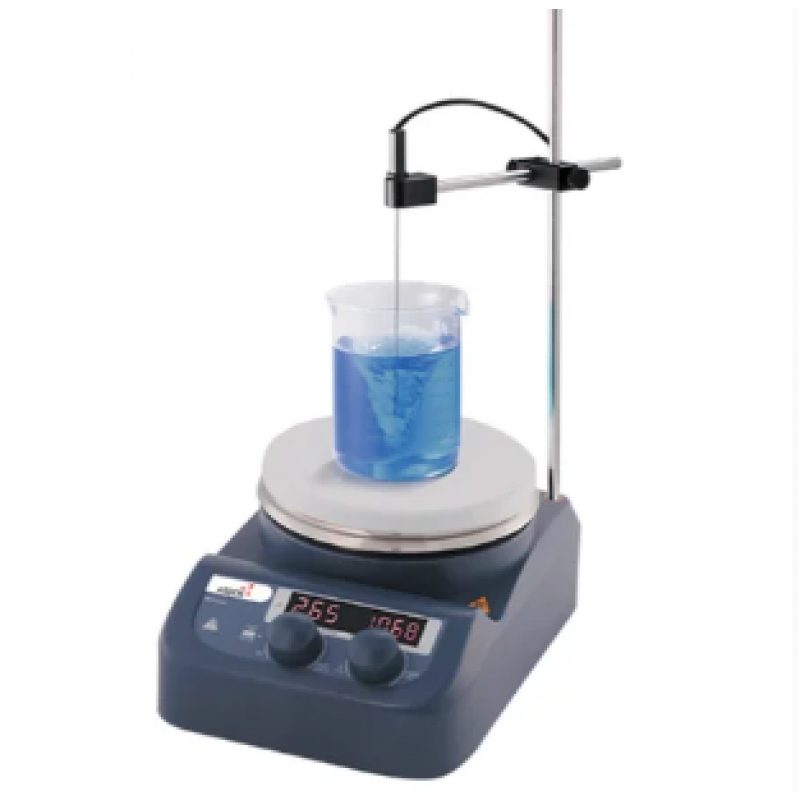

Swirltop Digital (LED) Magnetic Stirrer and Hot Plate

Speed Range [rpm]	200 - 1500 rpm
Weight	1.8 kg
Protection Class	IP21
Motor Type	DC Motor
Dimension	150 x 260 x 80 mm
Frequency	50-60Hz
Voltage	220-240V
Maximum stirring capacity	3L
Work plate dimensions diameter	Diameter 5 Inch
Work plate material	SS Cover Ceramic
Shaking movement	Orbital
Temperature range	Room Temperature - 280 DegreeC
Permissible ambient temperature	5 - 40 DegreeC
Permissible relative humidity	80%

• Swirl Top unit features an extremely durable, chemical resistant white stainless steel ceramic coated surface that
allows immediate heat transfer.
• LED Display shows temperature and speed.
• External Temperature sensor accessory is available with accuracy of ± 0.5°C.
• Extremely accurate digital control system is ideal for applications of analytical and biological laboratory.
• Swirl Top has advanced microprocessor control with convenient turn knobs that allows quick, precise adjustment and
maintains accurate temperature and speed.
