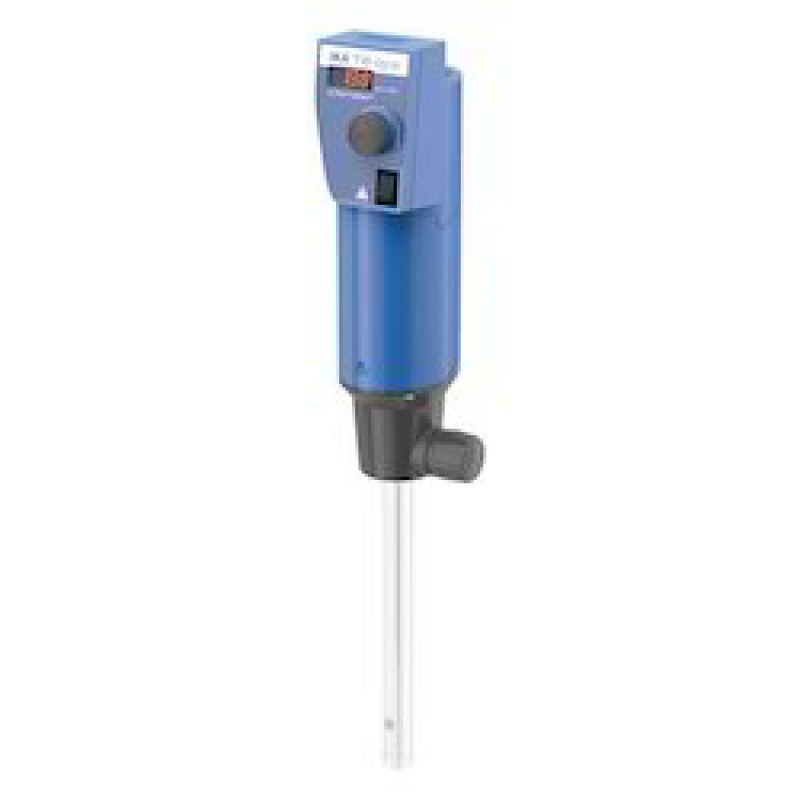

T 18 digital ULTRA-TURRAX
Product Details :
| Minimum Order Quantity | 1 Piece |
| Usage/Application | Chemicals |
| Capacity | 1.5 Liters |
| Drive | DC Motor |
| Model Name/Number | IKA Dispersers T 18 digital ULTRA-TURRAX |
| Brand | IKA |
| Material | Stainless Steel |
| Automation Grade | Manual |
| Phase | Single Phase 230VAC |
| Voltage | 230VAC |
Competitively priced dispersing instrument for volumes from 1 – 1500 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.
Features:
- Digital speed display
- Electronic speed control
- Electronic overload protection
- Stainless steel dispersing elements can be cleaned quickly and easily
- Plastic disposable dispersing elements are available in two sizes
- Error code display
- Quiet operation
Technical Data:
| Motor rating input | 500 W |
| Motor rating output | 300 W |
| Volume range min. (H2O) | 0.001 l |
| Volume range max. (H2O) | 1.5 l |
| Viscosity max. | 5000 mPas |
| Speed range | 3000 – 25000 rpm |
| Speed deviation | 1 % |
| Speed display | LED |
| Speed control | stepless |
| Noise without element | 75 dB(A) |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Timer | no |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 87 x 271 x 106 mm |
| Weight | 2.5 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | no |
| Analog output | no |
| Voltage | 220 – 240 / 100 – 120 V |
| Frequency | 50/60 Hz |
| Power input | 500 W |
Additional Information:
Production Capacity: 100
Delivery Time: 1 Day
