TMC Pneumatics Solenoid Valves
Product Details:

Packaging Type	Box
Material	Mild Steel
Media	Gas
Automation Grade	Automatic
Flow Rate	20 Kmph
Color	Black And White
Brand	TMC

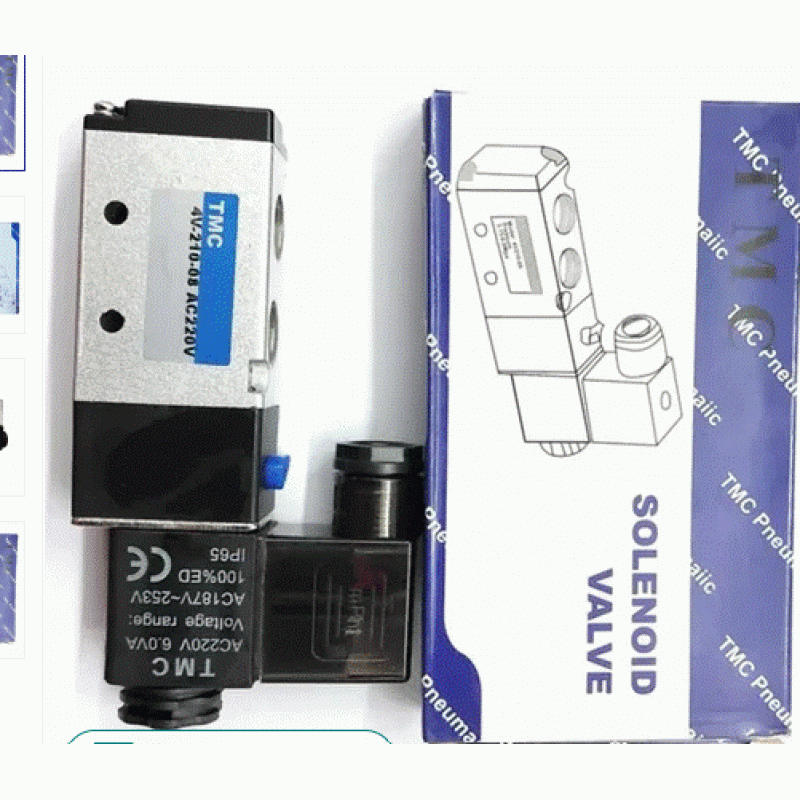

The Solenoid Valve 4V-210-08 is a part of the 4V200 Series. Here are some key features and specifications:
It has 5 ports and can be in 2 positions.
The applicable fluid for this valve is air.
It does not require lubrication.
The valve is pilot-operated.
It has a soft seal.
The valve has a single self-reset (spring return) actuation
The connection diameter is 1/4.
The flow coefficient (Cv) is 0.89.
The wiring method is a DIN socket.
It is designed to power a compressor or suction pump in a long-lasting, dependable, and high-performance manner.
The operating temperature range is from -5 to 50 degrees Celsius.
The working pressure is 0.15~0.8Mpa.
The maximum pressure resistance is 1.2Mpa.
