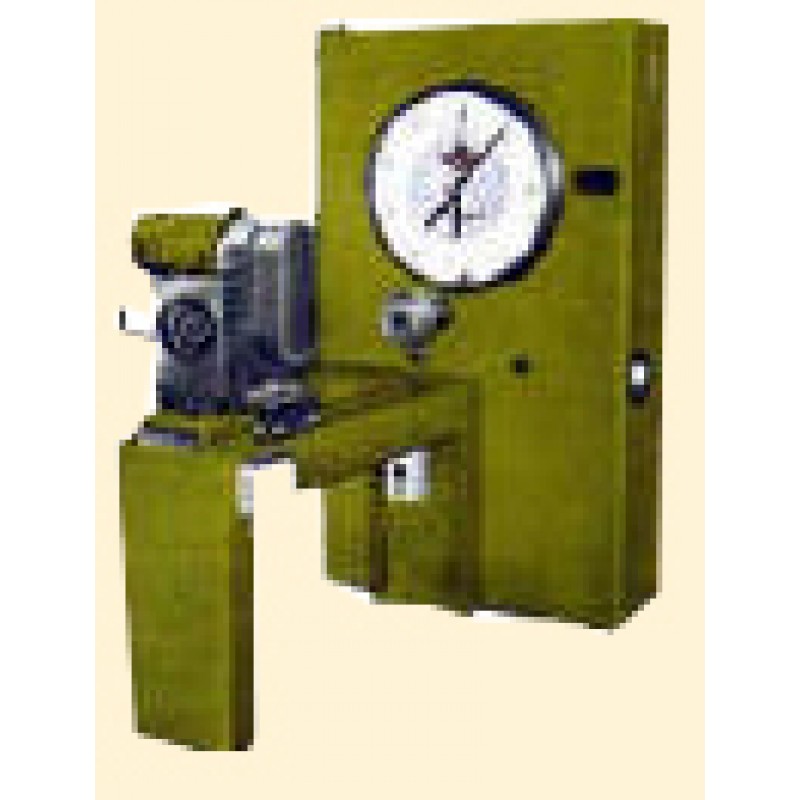

TORSION TESTING MACHINE
Features :
Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials. Torque measurement is by pendulum dyanometer system. Torque ranges can be adjusted by auto torque selector. Torque can be applied to specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist.
TECHNICAL DATA :
| MODELS | UNIT | PMT-9A | PMT-9B | PMT-9C | PMT-9D | PMT-9E | PMT-9F | PMT-9G | PMT-9H | Max. torque
capacity | Kgm | 6 | 10 | 20 | 50 | 100 | 200 | 300 | 600 | | Torque Ranges | Kgm | 60,30 | 100,50,
20 | 200,100,
50 | 500,250,
100,50 | 1000,500,
250,100 | 2000,1000,
500,200 | 3000,1500
600,300 | 6000,3000
1500,600 | No. No. of Div. on
Dial | Nos | 600 | 500 | 500 | 500 | 500 | 500 | 600 | 600 | | Torsion Speed | RPM | 1.5 | 1.5 | 1.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | Clearance
between Grips | mm | 0-400 | 0-420 | 0-450 | 0-500 | 0-600 | 0-1000 | 0-1000 | 0-1500 | Grips for Round
specimens
with square sholders | mm | 4-12 | 4-12 | 7-20
| 10-30
| 10-34
| 20-50
| 30-60
| 40-70
| Grips for flat
Specimens
with square sholders
width
mm | mm | 1-5
25 | 2-8
25 | 3-10
30 | 5-12
40 | 5-15
50 | 10-20
60 | 15-25
60 | 25-40
70 | Motor (400-440 V,
3 Phase & 50 Hz.) | HP | 0.5 | 0.5 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 | 3.0 |
|
|
