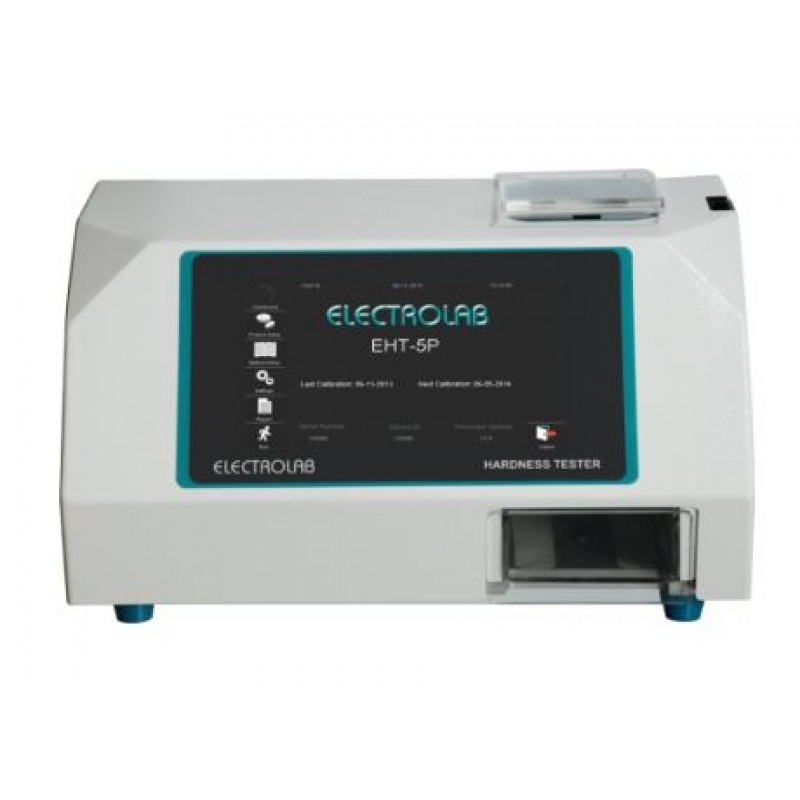

Tablet Testers
Product Details :
- Measures 5 parameters - Weight, Thickness, Diameter (Length), Width and Hardness
- Full color intuitive touch screen display
- Constant speed and constant force measuring principle
- Up to 100 samples per test
- Jaw with multi groove
- 3 level user management security
- Indicator for calibration due date
- Light and audio alarm indicator for Instrument status
- Programmable calibration and verification modes
- Auto / Manual mode with programmable delay time
- Adjustable delay between the samples
- Tablet manager tray for easy carrying of tables from weighing scale
- User selectable templates for printing reports
- Protective cover to protect operator from inhaling tablet dust from tablets that 'explode'
- Embedded printer for printing test results, validation and calibration reports
- 21 CFR part 11 compliance
- 10,000 product storage
- Audit trial
Specifications :
| Model | EHT-5PR |
| Parameters | weight, Thickness, Diameter / Lenght, Width, Hardness |
| Compliance | Body can be stainless steel (S.S) to comply with cGMP regulations or painted MS |
| Display | 7.0* touch screen display |
| Samples per test | Up to 100 |
| Adjustable delay between the samples | 1 sec to 99 secs |
| Measuring principle | constant speed |
| Printing of data and graphs | User defined templates |
| Hardness Range | 3N - 800N |
| Accuracy | ±1N |
| Jaw opening | 40mm (up to 65mm optional) |
| Jaw | Dual (Big and Small groove ) |
| Units for hardness | N, Kp, Sc, user defined |
| Units for thickness /diameter | mm / inch |
| Constant speed setting | 1mm to 3 mm in step of 0.1 mm |
| Compatible weighing balances | Sartorius/ Mettler Toledo/Shimadzu/Contech/ Ohaus / Radwag |
| Security | Multi level user management ( flexible 10 role ) |
| Hardness /thickness calibration | 2 point calibration 3 point verification linearity |
| Report format | User defined tabular format |
| Interface | LAN and serial |
