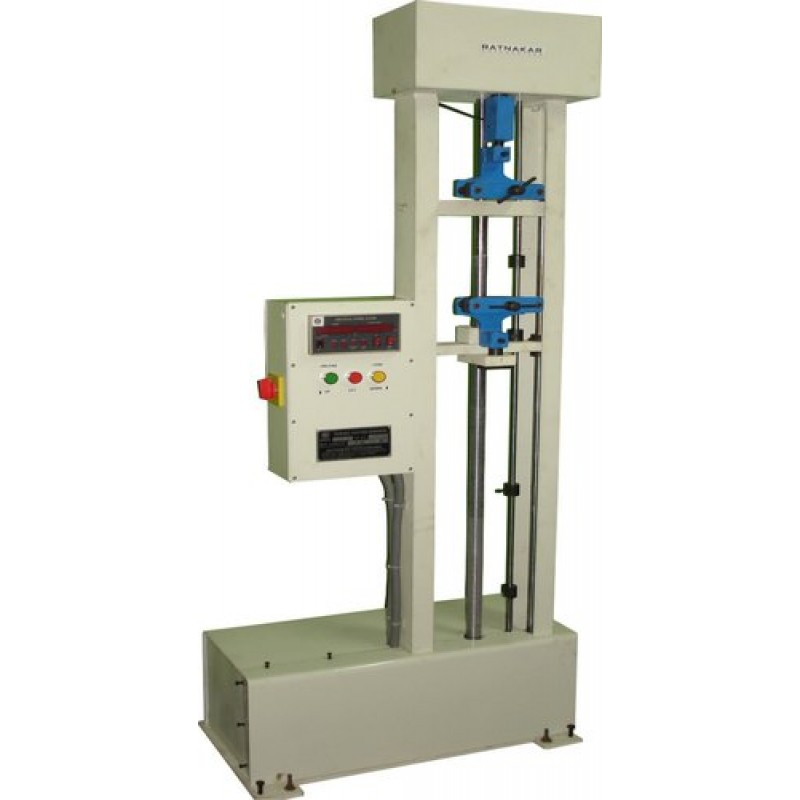

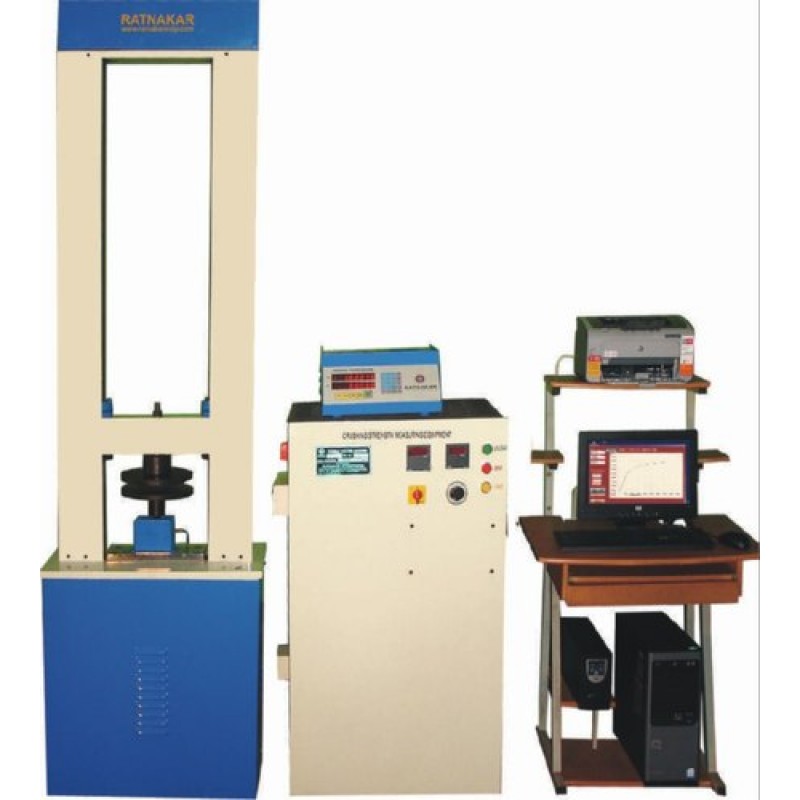

Computerized Tensile Testing Machine
Product Details:
Usage/Application | Industrial |
Capacity | up to 200kn/ 20 ton |
Material | Mild Steel |
Display Type | Large Color Graphic Display |
Brand | RATNAKAR |
Operating Mode | Automatic |
Frequency | 50 HZ |
Voltage | 230V AC/ 440V AC |
Accuracy | HIGH |
Number Of Load Cells | UP TO 5 LOAD CELLS |
Features :
- Precision AC servo motor & drive with ball lead screw gives an advanced drive system with 1 to 500 standard speed range.
- Provision for load cell interchangeability & thereby automatic selection of load full scale & Units (kN or N).
- Speed selection through data entry or variable speed through potentiometer.
- Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metal sheets, fiber glass, leathers, springs, card boards etc.
- Built-in parallel interface to connect Dot matrix printer for data & curve print-out.
- Safety interlock for overload & limit switch sensing to ensure protection during test.
- Universal applications in R& D, Education, Quality control & Production for test like, Tensile, Compression, Bending etc.
