Tensile Machines

Product Details:

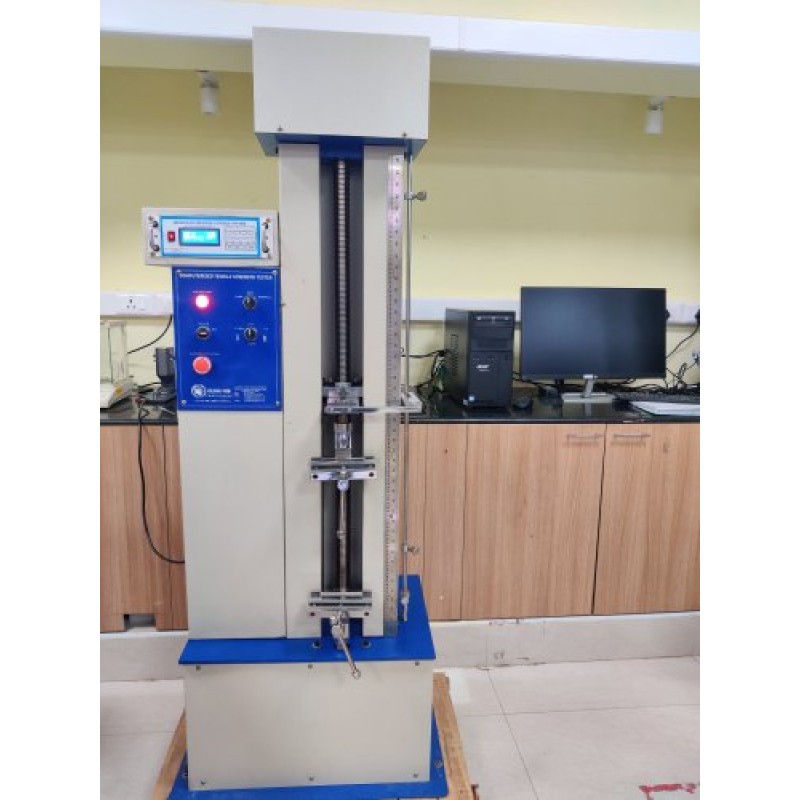

Vertical tensile testing machine having capacity of 250Kg with following scope of supply:

Specifications:

• Type of Construction: Load frame supported on a base plate with legs support.
• Force Rating: 250Kg.
• Grip to Grip separation: Min 25mm and Max. 700mm
• Day light distance: Approx 750 mm between base plate and upper cross head.
• Display : Digital Display
• Peak hold facility available.
• Displacement Resolution 0.1
• Accuracy : 0.5 %
• Fixed Speed of traverse as per the customer’s requirement.

Grips and fixtures:

• 1 set of Grips, suitable for testing of flat specimen.
• Precise holding to prevent pre mature wear and tear while holding the specimen.
