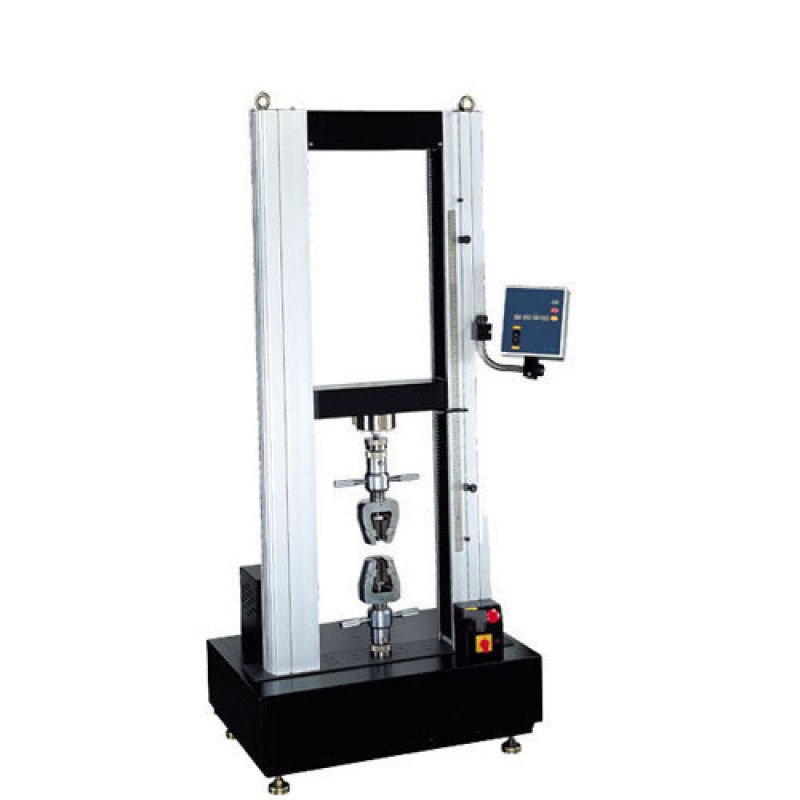

Tensile Testing Machine
Product Details:
Capacity | 250 to 1000 Kgf |
Phase | Three Phase |
Voltage | 440 VAC |
Traverse Speed | 100 mm / min |
Grip Separation Minimum | 25 mm |
Grip Separation Maximum | 1000 mm |
Rajco Tensile Testing Machine are used for wide variety of materials for their tensile strength and elongation. The materials include wires, cable, plywood, conductors, ferrous and non- ferrous materials, cloth, fibres etc.The machines are manufactured in various capacities and test appropriate traverse speed and using suitable grips in conformity with ASTM, DIN, BIS, BSS standards.These machines are fitted with over-travel safety switches suitable for 230 V AC supply.
Specifications:
Cap. (Kgf) | 250 | 500 | 1000 | 2500 | 5000 |
|
Ranges | 0-50 kgf x | 0-100 kgf x | 1-1000 kgf x | 0-2500 kgf x | 0-5000 kgf x |
|
100 gms | 200 gms | 2 kgf | 5 kgf | 10 kgf |
||
0-1000 kgf x | 0-250 kgf x | 0-500 kgf x | 0-1000 kgf x | 0-2500 kgf x | ||
200 gms | 500 gms | 1 kgf | 2 kgf | 5 kgf | ||
0-250 kgf x | 0-500 kgf x | 0-250 kgf x | 0-2500 kgf x | 0-1000 kgf x |
||
500 gms | 1 kg | 500 kgf | 1 kgf | 2 kgf |
||
Traverse Speed(mm/min.) or as per
specif | 500 100 | 100 | 100 | 100 | 100 |
|
Grip Separation minimum Maximum | 25mm | 25mm | 25mm | 25mm | 25mm |
|
1000mm | 1000mm | 750mm | 750mm | 750mm |
||
Power Requirement | 3 ph 440V | 3 ph 440V | 3 ph 440V | 3 ph 440V | 3 ph 440V |
|
50 c/s AC | 50 c/s AC | 50 c/s AC | 50 c/s AC | 50 c/s AC |
||
Load Elongation | Included | Included | Included | Included |
|
