Transmission Sample Holder

Product Details :

Usage/Application	Sample Holder
Brand	STJapan
Material	MS
Shape	Rectangular
Operating Voltage	220 V AC
Frequency Rate	50 Hz

Other Details:
·         S.T.Japan offers various type of sample holders, has slide mount base and it can set on slide mount holder in sample compartment of general FTIR.

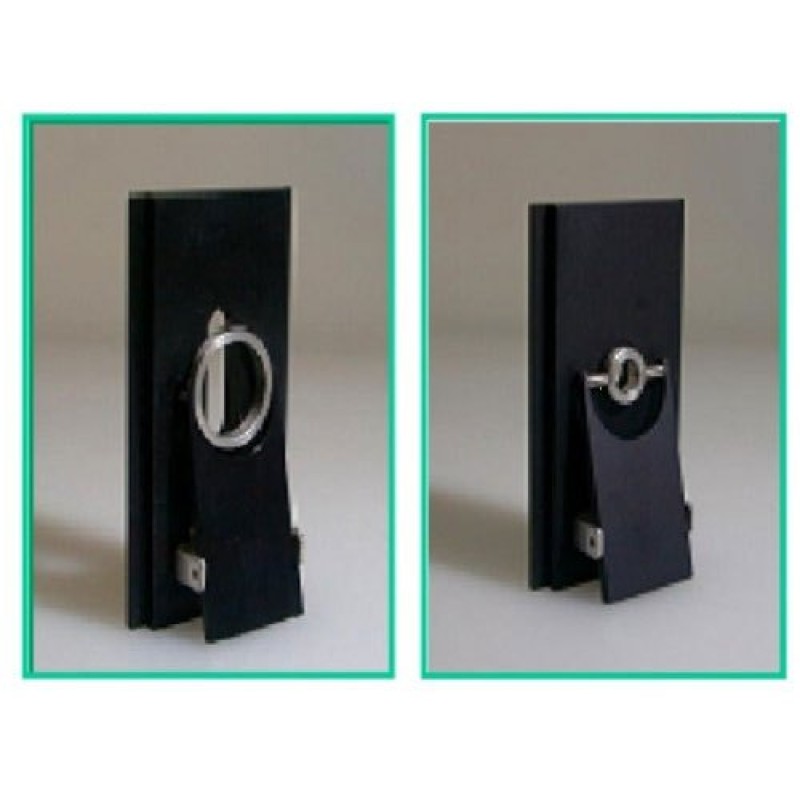

Transmission Sample Holder for Films:
This inexpensive, easy to use holder is designed to hold samples with a spring loaded clip. It can easily hold windows, pellets, and films securely in place. A Viton O-ring, mounted in the clip, protects the sample from damage. Two EZ-Clip models are available

·         A 25 mm diameter model - best for windows & films.
·         A 13 mm diameter model - best for pellets. Designed To Hold Collars For 1, 3, 7 and 13mm KBr Pellets.
·         Magnetic back plate holds the sample in place. Easy positioning of the sample collar on a removable mount with a half moon cut-out. Includes 2 interchangeable mounts         of different width. An opening at the top end of the holder is used for 13 mm pellets. Standard sized backplate fits all spectrometers Combines perfectly with our KBr-             table press.

Versatile All-Round Sample Holder For Transmission Analysis :
This universal holder features a spring loaded clip as well as a magnetic plate to hold samples firmly in place. It can be used for films, pellets, windows, mulls, etc in sample sizes from 13 up to 40 mm diameter and 13 mm thickness.
The hold down section of the clip is gimballed: It can be flipped over and used facing in either direction providing a 10 mm and a 22 mm aperture.
The 10 mm aperture is removable and can be unscrewed when using the 22 mm aperture.

·         A thumbscrew provides adjustable pressure on the clip a Viton O-ring mounted in the clip protects the sample a groove in the base of the holder accommodates two               magnets with 10 mm or 22 mm aperture. Standard sized backplate fits all spectrometers.

Sample Holder For Liquid Samples And Pellets :
·         Base and positioning mount can be slided up & down (25 mm) in order to position the sample correctly according to its specific size and form Includes a mount with a             triangular cut-out, which can be fixed on the movable base can be used for IR, UV, NIR, and Raman Standard sized backplate fits all spectrometers.
·         Magnetic Pellet Holder (right photo) is used to hold the 13mm diameter pellet by magnet strip.
·         It is including backplate, 13mm hole magnet strip and slotted hole magnet strip. Magnetic Film Holder (left photo) can hold the various film samples by magnet strips. It          includes backplate, 3 rectangle hole magnetic strip and one 13mm diameter hole magnetic strip and one blank strip. Blank magnetic strips are available for cutting                  custom size or shape apertures.

Additional Information:
·         Packaging Details: International Air packaging
