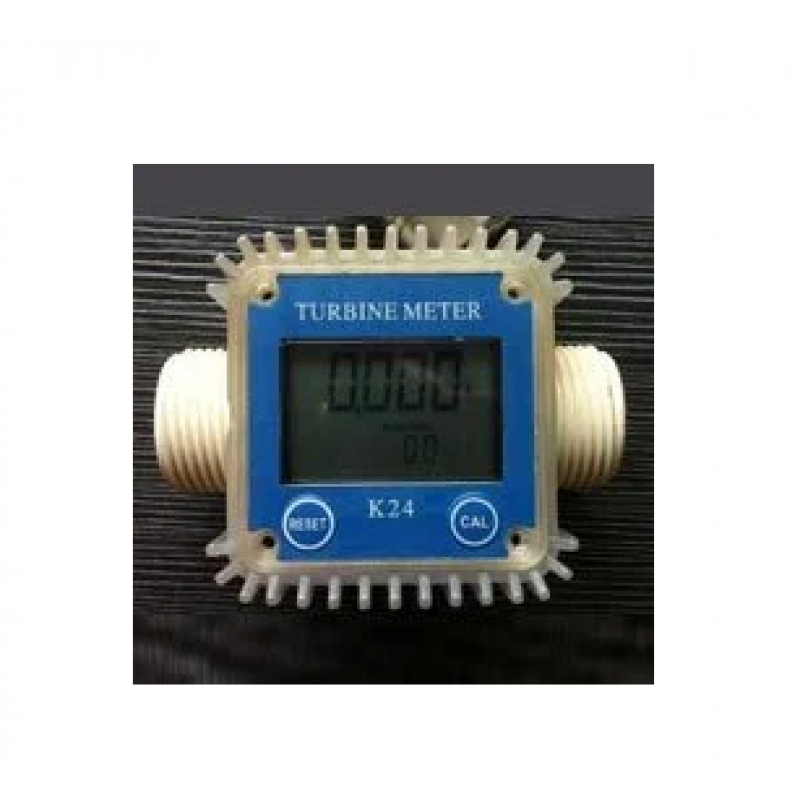

Turbine Flow Meter
Product Details:
We are among the distinguished Manufacturers, Exporters and Suppliers of Turbine Flow Meter. Turbine Flow Meter operates on the principle of motion, where the flow meter senses the spinning of the rotor inside and converts it into pulsating electrical signal. Turbine Flow Meter provides an accurate performance and is highly acknowledged for its smooth operation, robust construction and longer service life.
Specifications Op Pressure Defined By Endconnectionsupto 400 barPick Off Type Magnetic Output 15 to 20 mV min Temparature -20 Deg C to 80 Deg C Linearity +/- 0.5% of Reading Repeatability +/- 0.05% of Reading Display 6 digit LCD ( Total Mode )4 digit LCD ( Flowrate Mode )Power Supply Self Powered-replaceble Lithium Batteries ( Optional ) External 8-24 V dc via 4-20mA loop Enclosure IP 66 ( Mounted on the Meter )Units ( Total) Litres,Gallons,Cubic MetersTime ( Rate ) Per Second,Minutes,HourK Factor Range/Decimals Programmable Data input Via KeysAnalogue Output optional 2 Wire 0/4-20mA,12-24V dc into 750 ohms @ 24 V. Linearisation Up to 10 Points.( optional )Indications Low Battery Indication
