Wide range of Tran illuminators to cater the needs from school level, college level etc. Visual & UV light source. Designed to provide uniform & high intensity light source to detect even nanogram quantity bands. Durable high wattage lamps are housed in a sturdy metal box. Hot & stinky air generated during operation is removed by exhaust fan. Combined  illuminators – UV/White are also supplied.

COMBINED UV-VISUAL TRANSILLUMINATOR:

Basic system with 25 x 13cm UV and 20 x 20cm white light   viewing  area. Fitted  with  satebeam  UV  filter, High  range  (360 nm)  UV  source,  Four x 8  W  UV lamps, cool day  light, Four x 6W cooling fan orange UV blocking shield.

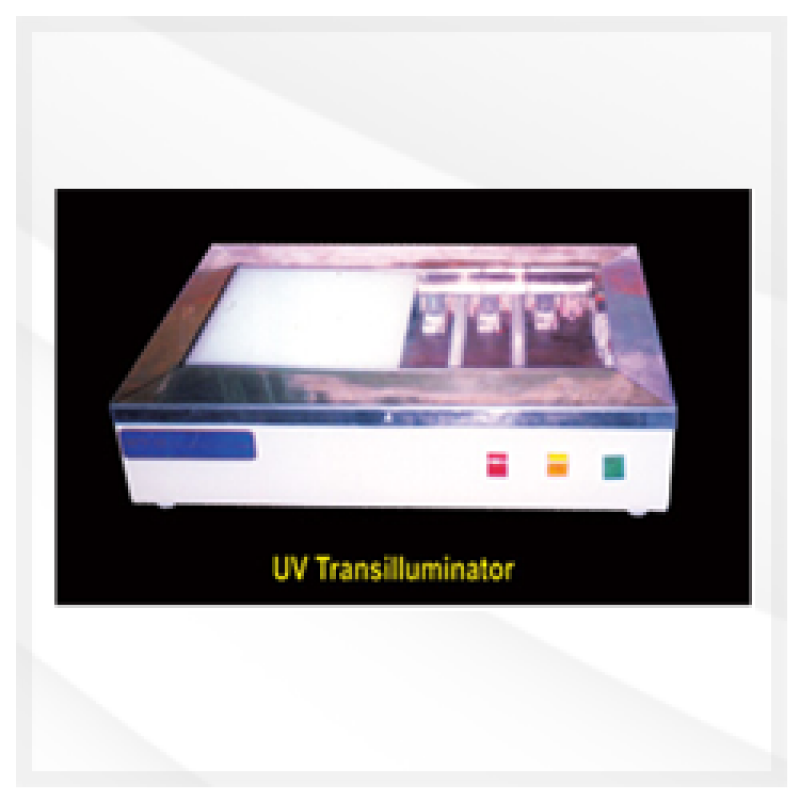

UV TRANSILLUMINATOR – RESEARCH MODEL:

Basic system with 20 x 20cm viewing area. Fitted with satebeam filter, High range (360nm) UV source, Eight x 8  W  tubes, air  cooling fan  and  UV shield – cum – Orange filter.

 COMBINED UV-VISUAL TRANSILLUMINATOR - RESEARCH MODEL:

Basic system  with  20 x 20cm UV  & 20 x 20cm white light viewing area. Fitted with satebeam UV filter, High range (360 nm)  UV  source, Eight x 8 W  tubes, Six X 6W cool day light, air cooling fan and  UV shield-cum-orange filter.
