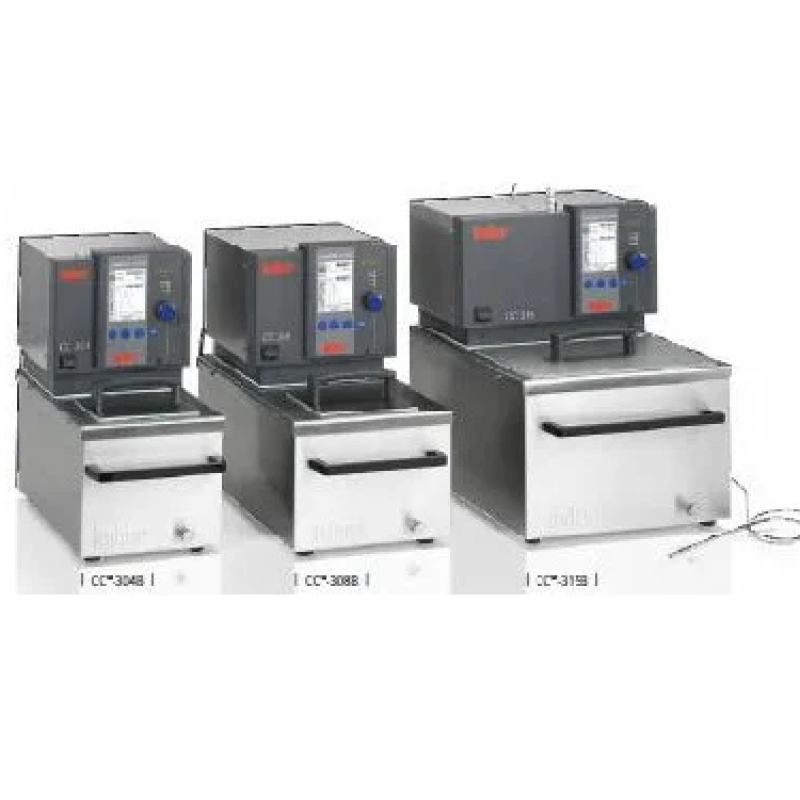

Ultra Low Temperature Circulators
Product Details:
The Program: Heating/Cooling thermostats for temperatures from -90°C up to 200°C.
With all the parameters explained above being valid, the Ultra low temperature Thermostats cater to most of the smaller applications in the specified range.. They carry these features with them :
* Compact ergonomic design * CC-Pilot with Plug & Play Technology * Display and function keys protected against
Splashing * Large TFT-display, bright LCD-display with zoom function and display resolution 0,1 °C * EASY Control: simple operation with rotary knob and function keys * All menu functions listed alphabetically * RS232 interface and connection for optional Com.G@te (NAMUR Standard) * Steplessly variable pump speed for homogeneous temperature distribution in bath or optimal circulation and heat transfer in external applications * Active Cooling Control – mechanical cooling up to maximum working temperature * Intelligent energy management with cooling power control for energy saving, environmentally friendly operation and reduced heat emissions * Pt100 External- Sensor connection via 4-wire Lemo plug * Calibratable temperature sensor * Adjustable over temperature and level protection * Low level early warning system * Compliant with DIN12876-1 safety class III/FL * Pump connections for external applications * Bath opening for direct thermoregulation of objects * Temperature controlled bath housing to prevent the formation of ice or condensation * Drain on front (for regular fluid change: optional dran valve) *

Increased functionality with CC-Pilot E-grade® (Optional):
True Adaptive Control – self optimising internal and cascade control – Display resolution 0,01 * – Integrated programmer with 3 programs each with 5 segments or up to 100 segments distributed over 10 programs – Ramp function for quick temperature changes – Multi point calibration of temperature sensor * Increased functionality with
Accessories (Optional): – External pressure sensor for VPC pressure control – Com.G@te acc. to NAMUR Standard RS232, RS485, programmable volt-free contact, ECS (external control signal), level monitoring Calibration and displacement inserts
