Ultra Turrax Tube Drive Control Workstation

Ultra Turrax Tube Drive Control Workstation

Product Details :

Country of OriginMade in India

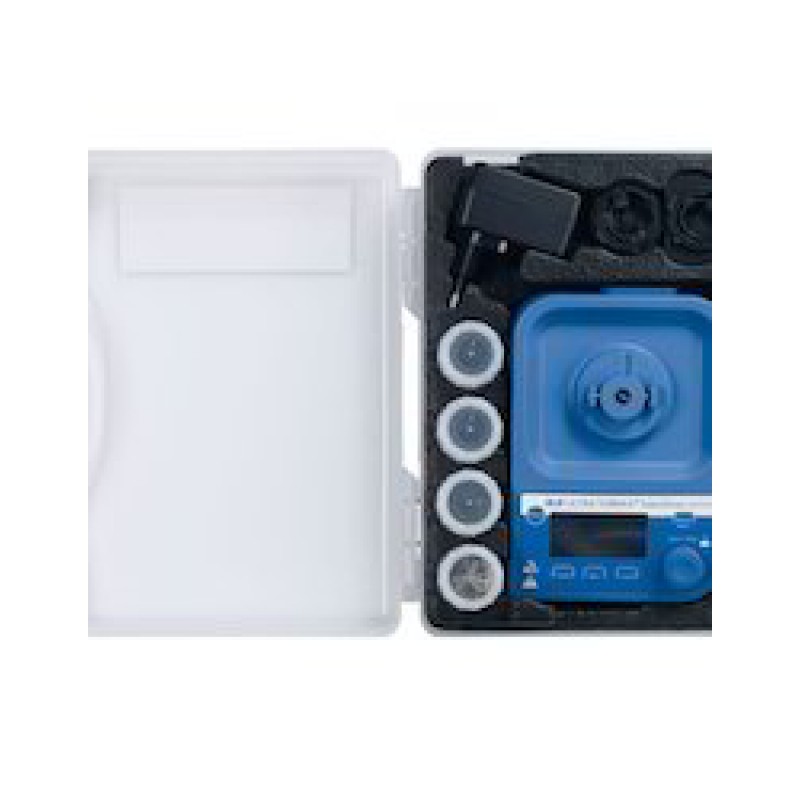

Workstation consists of ULTRA-TURRAX® Tube Drive control , 1 x ST-20, 1 x DT-20 incl. 1 removal hook for removal the rotor-stator unit, 2 x BMT-20 G / S, power supply.

Unique and universal dispersing, stirring, homogenizing and grinding system with sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).


Features:

  • USB interface for control and documentation
  • Collecting tray for protection against leaking liquids
  • Simple and precise menu navigation thanks to the OLED display
  • Programmable sample conditions (library)
  • Adjustable reverse operation
  • Turbo-button for short time intensive mixing, homogenizing or grinding
  • Multilingual menu
  • Digital display for all functions
  • Disperse, stir, homogenize and grind using a single drive unit
  • No possibility of cross-contamination
  • Sealable disposable sample tubes
  • No cleaning required
  • High level of user safety
  • Suitable for individual use and use in series
  • Gamma-sterilized tubes
  • Tubes with pierceable membrane covers
  • Tubes with 2 – 15 ml and 15 – 50 ml
  • Reproducible tests
  • Patented



Application areas:

Human medicine, pathology, veterinary medicine, animal hygiene insti-tutes, Foodstuffs testing laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biology, Chemistry, Cosmetics


Technical Data:

Motor rating input20 W
Motor rating output17 W
Viscosity max.5000 mPas
Speed range400 – 8000 rpm
Reversible direction of rotationyes
Speed deviation3 %
Speed displayOLED
Speed control10 RPM Steps
Noise without element50 dB(A)
Process typebatch
Timeryes
Timer displayOLED
Dimensions (W x H x D)122 x 54 x 178 mm
Weight0.9 kg
Permissible ambient temperature5 – 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
USB interfaceyes
Voltage100 – 240 V
Frequency50/60 Hz
Power input20 W
DC Voltage24 V=
Current consumption800 mA
