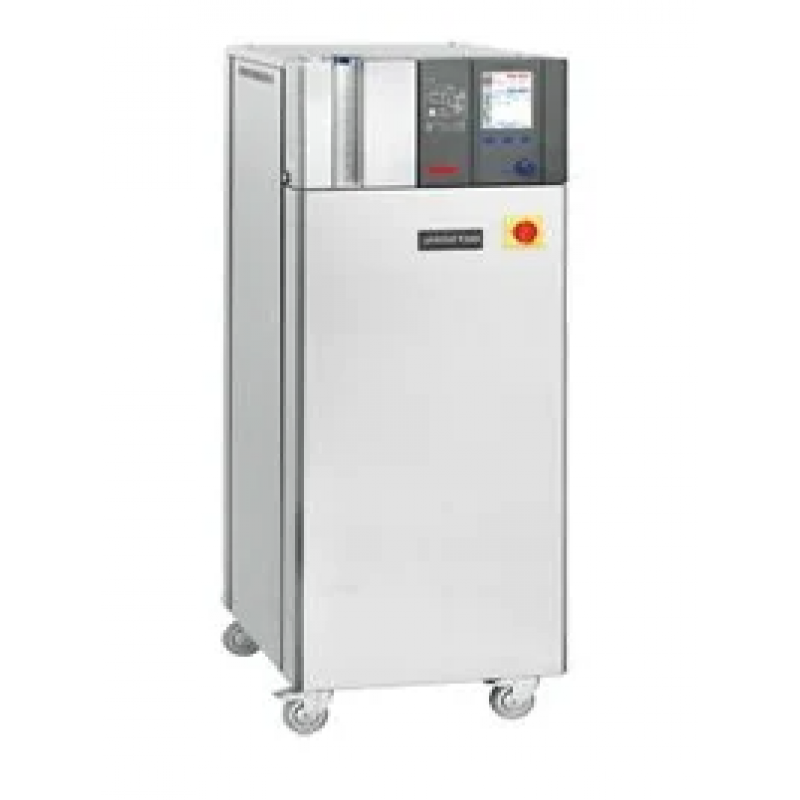

Unistats High Temperature Circulators
Product Details:
High-precision and space saving temperature control up to +425 °C. The new HT thermostats of the Unistat cc400 range set new standards in safety, easy operation, and rapid, dynamic temperature control. The Unistat cc401w HT model features an integral stepper motor to control the HT-Cooling, level protection and configurable overtemperature protection. Its minimal internal volume allows the shortest heat-up times to be achieved, while at the same time the maximum expansion tank temperature is limited to +60 °C. The working life and properties of the thermal fluid are also protected, by avoiding direct contact between the hot fluid and atmosphere. The HT thermostats with controlled HT-Cooling are suitable for temperature control applications up to +425 °C, e.g. a double jacketed reaction vessel (reactor), and pilot plants, as well as the semiconductor Industry and high temperature distillation. They are suitable for maintaining constant high temperatures, or to contain an exothermic reaction at high temperature.
