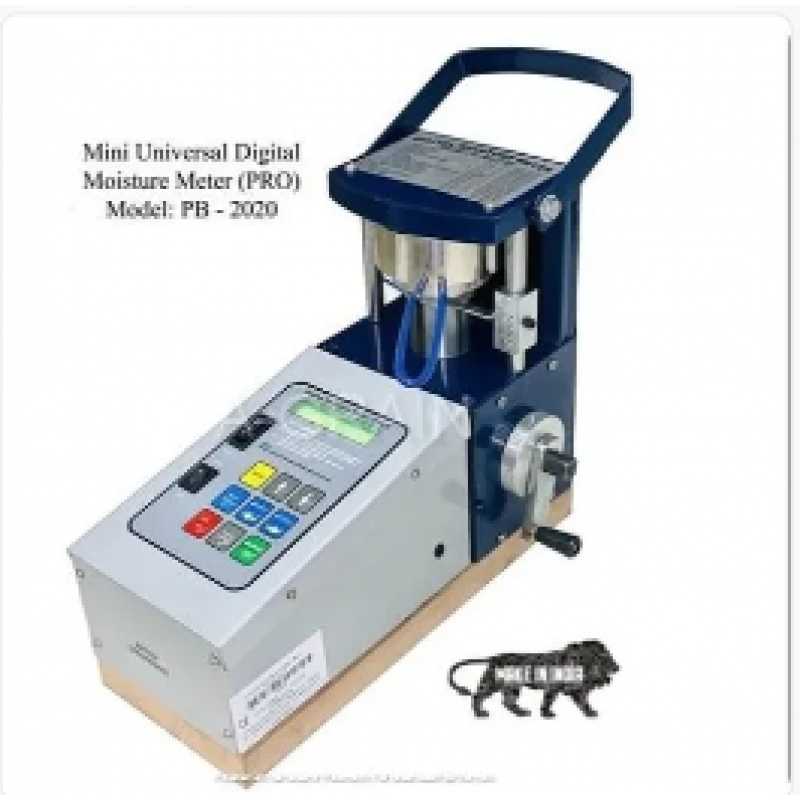

Universal Digital Moisture Meter (Mini) (PRO)

Usage/Application	Laboratory
Type	Digital Moisture Meter
Model Name/Number	PB-2020
Color	Black
Material	Mild Steel Pillar Body
Size	30 x 17 x 28
Country of Origin	Made in India
Data Transfer	Through RS- 232 Port to Printer and Personal Computer
PC Software for data printing	Available through propreitory iSmart Software
Receipt Printing	Through Serial Printer for printing Receipt Data ( Party Name , Date, Time, Commodity Name , Moistur

Product	PB -2020 Universal Digital Moisture Meter (Mini) (PRO)
Compression Unit Type	Bench top / Table Model with Mild Steel Pillar Body
Principle of Measurement	Resistance/Conductivity Measurement
Sensor	Cup Type
Measured Parameters	Moisture, Room Temperature
Calibration	Manual and Automatic Both
Range	3.5 – 40.0%
Accuracy	Plus / minus 0.20%
Display	2 x16 column LCD
Resolution	0.1
Temperature Sensor	PT-100 or LM335
Temperature Measurement Range	0-60 °celsius
Room Temperature Compensation	Automatic
Operating Temperature	0-60 °celsius
Data Storage	200 readings (Expandable up to 1000 readings)
Real Time Clock	Inbuilt
Keypad	9 Keys membrane keypad with polydome switches
Hot Keys	3 user programmable hot keys
Error Correction Facility	Inbuilt along with new commodity calibration
Power Supply	9 volts dc through adaptor or 1.5 V x 6 dry cell
Weight	12.5 kgs Apprx.

Additional Information:

• Packaging Details: Wooden Box supplied with 3 Volume cups , Adaptor, Ratchet Handle, Dust Cover and Operation Manual
