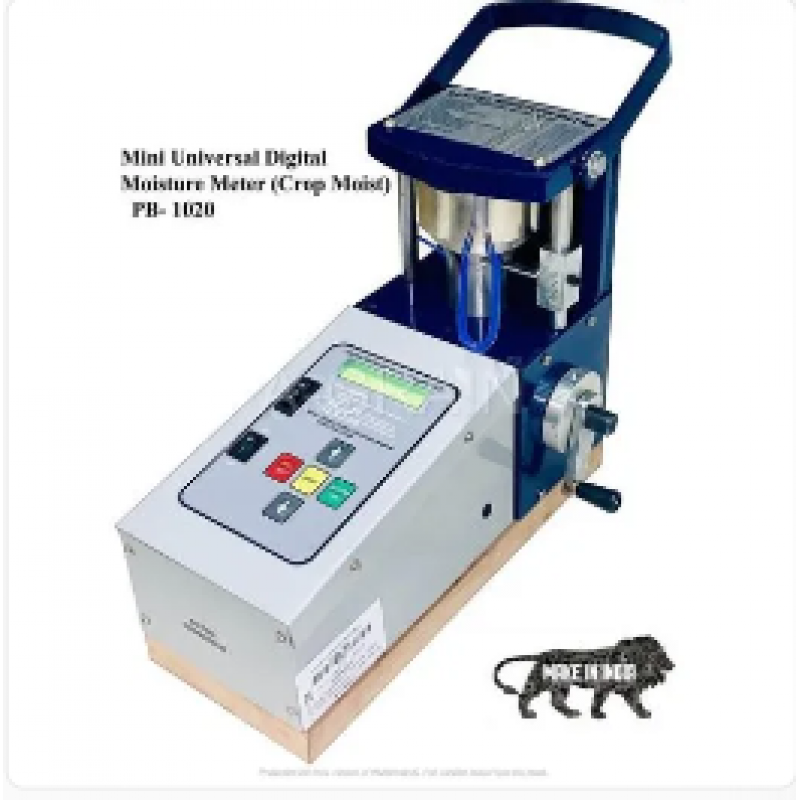

Universal Digital Moisture Meter (Mini) (cropMOIST)

Usage/Application	Laboratory
Type	Digital Moisture Meter
Model Name/Number	PB-1020
Color	Black
Material	Mild Steel Pillar Body
Size	30 x 17 x 28
Country of Origin	Made in India



Product PB -1020 Universal Digital Moisture Meter (Mini) (cropMOIST)

 Compression Unit Type Bench top / Table Model with Mild Steel Pillar Body

Principle of Measurement Resistance/Conductivity Measurement

Sensor Cup Type

Measured Parameters Moisture, Room Temperature, Humidity

Calibration Manual and Automatic Both

Range 3.5 – 40.0%

Accuracy Plus / minus 0.20%

Display 2 x16 column LCD

Resolution 0.1

Temperature Sensor PT-100 or LM335

Temperature Measurement Range 0-60 °celsius

Room Temperature Compensation Automatic

Operating Temperature 0-60 °celsius

Real Time Clock Optional

Keypad 4 or 5 Keys membrane keypad with polydome switches

Power Supply 9 volts dc through adaptor or 1.5 V x 6 dry cell

Weight 12.5 kgs apprx.

Additional Information:

• Packaging Details: Wooden Box supplied with 3 Volume cups , Adaptor, Ratchet Handle, Dust Cover and Operation Manual
