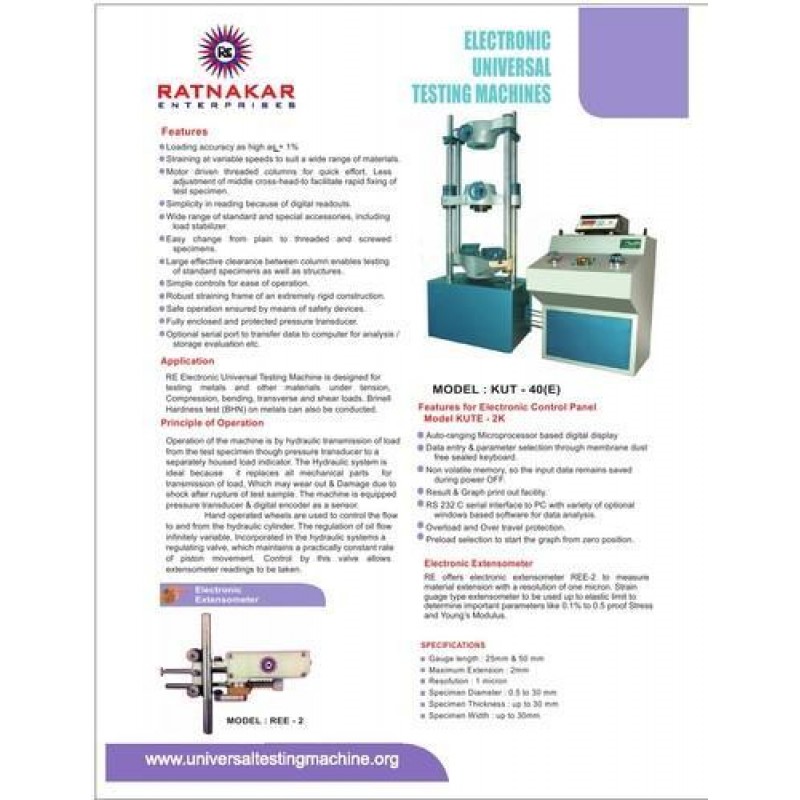

Electronic Universal Testing Machine
Product Details :
Minimum Order Quantity | 5 Unit |
Machine Type | HYDRAULIC |
Capacity | UP TO 1000KN |
Brand | Ratnakar |
Usage | Industrial |
Feature | Strong construction |
Maximum Capacity | 400 KN |
Ram Stroke | 200 |
We are a renowned and customer centric firm, which is engaged in delivering a comprehensive range of Electronic Universal Testing Machine. It is equipped with electronic digital display for load and elongation.
Technical Specifications:
- 1st Measuring Range : 0-80 KN
- Load Resolution : 0.02 KN
- 2nd Measuring Range : 0-160 KN
- Load Resolution: 0.04 KN
- 3rd Measuring Range: 0-400 KN
- Load Resolution: 0.1 KN
- Resolution of Piston Movement (Displacement): 0.1 mm
- Clearance for tesile at fully descended working piston : 50-700 mm
- Clearance for compression test at fully descended working piston : 0-800 mm
- Clearance between columns: 500 mm
- Straining / Piston speeds (at no load): 0-150 mm
- CONNECTED LOAD
- HP @ (Voltage: 440 V, Phase: 3, Hz : 50 ) : 2.3
Standard Accessories:
For tension test:
- Clamping for round: 10-25 mm
- Specimens diameters : 25-40 mm
- Clamping jaws for flat: 0-15 mm
- specimens thickness: 15-30 mm
- Width : 65 mm
For compression test:
- Pair of compression plates of diameter: 120 mm
For transverse test:
- Table with adjustable rollers width of rollers: 160 mm
- Diameter of Rollers: 30
- Maximum clearance between Supports: 500 mm
- Radius of Punch tops: 12,16 mm
Additional Information:
- Item Code: KUT40E
