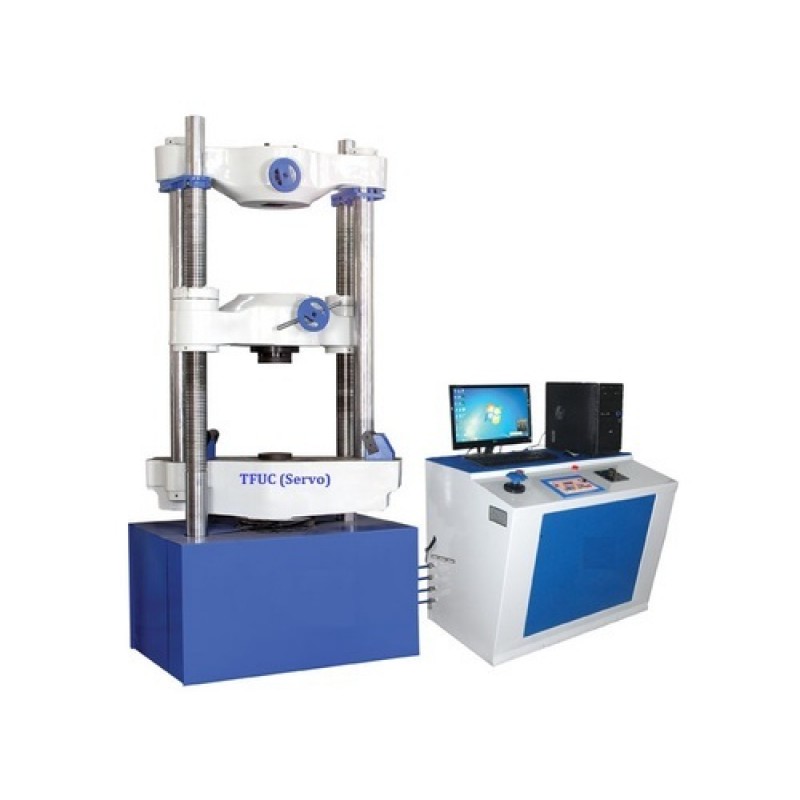

Servo Control Universal Testing Machine
Product Details :
Model Number | TFUC (Servo) |
Capacity | 100kn,200kn,400kn,600kn,1000kn,1200kn,2000kn |
Grade | Semi-Automatic |
Automation Grade | Semi-Automatic |
Phase | 3 |
Driving Method | Servo |
- Capacity of Computerized servo UTM machine available 100kN, 200kN, 400kN, 600kN, 1000kN, 1200kN & 2000kN.
- Calibration of UTM machine confirms to IS 1828 current standard. Detection of proof load, ultimate load, young modulus conversion to stress, strength & conversion to Kg, LBf, mm, cm & inch. Desired Straining rate/straining load can be selectable. Auto detection of overload, over travel& specimen brake on detection of above condition machine is automatically switched off.
- Online display of multiple graphs of load & extension.
Specifications :
| Model | TFUC-100 | TFUC-200 | TFUC-400 | TFUC-600 | TFUC-1000 | TFUC-1200 | TFUC-2000 |
| Measuring Cap (kN) | 150 | 200 | 400 | 600 | 1000 | 1200 | 2000 |
| Measuring Range | 0-150 | 0-200 | 0-400 | 0-600 | 0-1000 | 0-1250 | 0-2000 |
| Least Count (kN) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Load Range in kN with Accuracy of measurement +-1% | 2 to 150 | 4 to 200 | 8 to 400 | 12 to 600 | 20 to 1000 | 24 to 1200 | 40 to 2000 |
Resolution of Piston movement (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Max. tensile clearance at fully descended piston position | 50 to 700 | 50 to 700 | 50 to 700 | 50 to 800 | 50 to 850 | 50 to 850 | 50 to 900 |
Maximum clearance for Compression test (mm) | 0 - 750 | 0 - 700 | 0 - 700 | 0 - 800 | 0 - 850 | 0 - 850 | 0 - 950 |
