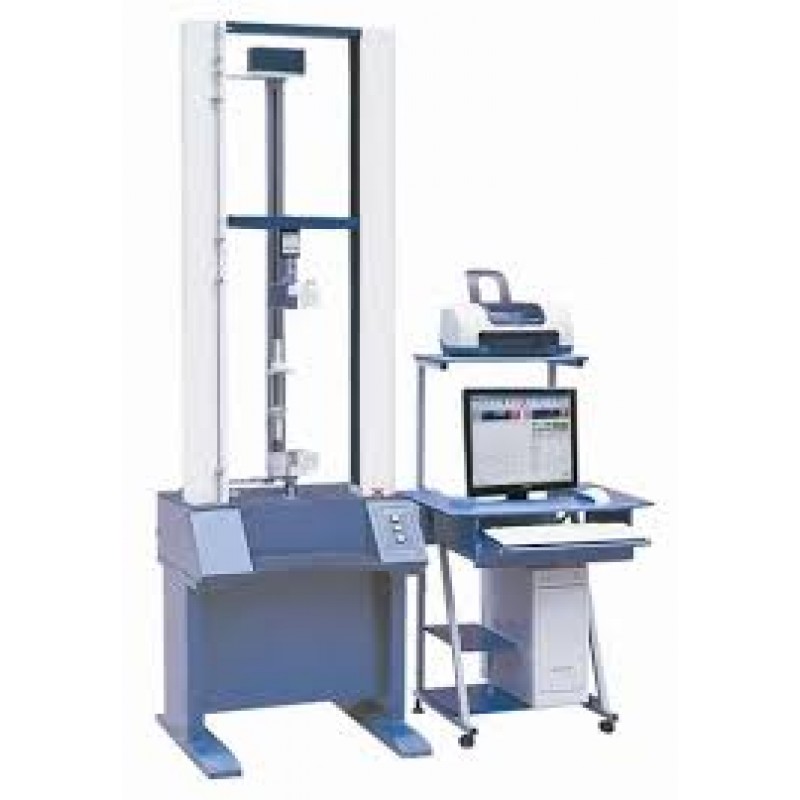

Universal Tensile Tester
Specifications :
- Loading System - AC/DC drive.
- Max. capacity - available from 10 Kgf to 10,000 Kgf.
- Test Width (mm) approx. - 400mm
- Crosshead Travel (mm) approx. - 1000mm
- Effective Stroke (mm) approx. - 800mm
- Crosshead Speed (mm/min) - upto to 500 mm/min(approx)
- Crosshead Return Speed - upto 500mm/min
- Tensile Load Measurement Accuracy - +/- 1%
- Stroke Limiter upper/lower - 2 points (upper/lower)
- Power : 220-240 Volts, 1-phase, 50Hz
- Test parameters displayed with graph simultaneously
- Real time graphic display of data
- Overlay display of data cur ve possible during test
- Selectable graphical display presentation
- Other test methods can be programmed by the operator
- Return after a test is selected
- Calibration File to calibrate the unit.
