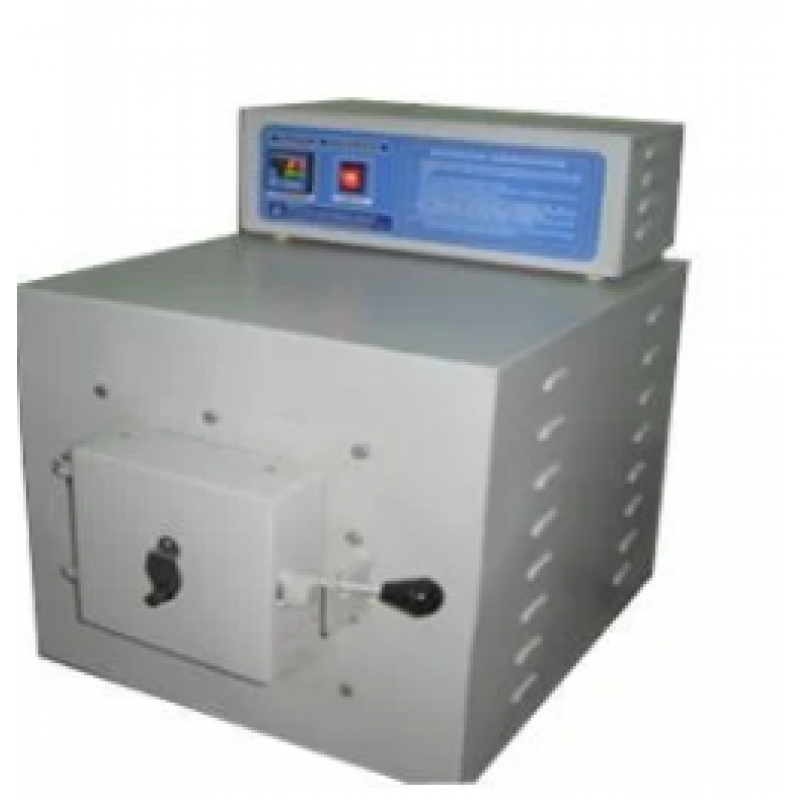

Vertical Muffle Furnace
Product Details:
To meet the precise demands of clients, we offer a unique range of Vaccum Muffle Furnace. These are ergonomically engineered in accordance with world class standards and using upgraded technologies. Our range is used in various industries. These can be availed in various specifications and models as per the demands of clients. Offered product is available at cost effective rates.

Features:

High performance
Effectiveness
Accurate dimension

Other Information:

Outer chamber of the Instrument made of Thick mild steel finished with powder coated.
Inner ceramic board muffle placed vertical sideways Silicon carbide rod heating elements and embedded with high quality ceramic board and ceramic fiber to avoid heat loss.In between muffle and outer walls insulated with high quality ceramic board and light
weight ceramic fiber.
Temperature range 5ºC. Above ambient to 1450 º C.
Accuracy /- 5 ºC.
Temperature controlled by Microprocessor based PID controller with dual display (Process value and set value), low and high limit setting.
Heating Element: Silicon Carbide Rod with 5 KW thyristerised Controller. PTPT RH thermocouple
The working chamber size given below.
