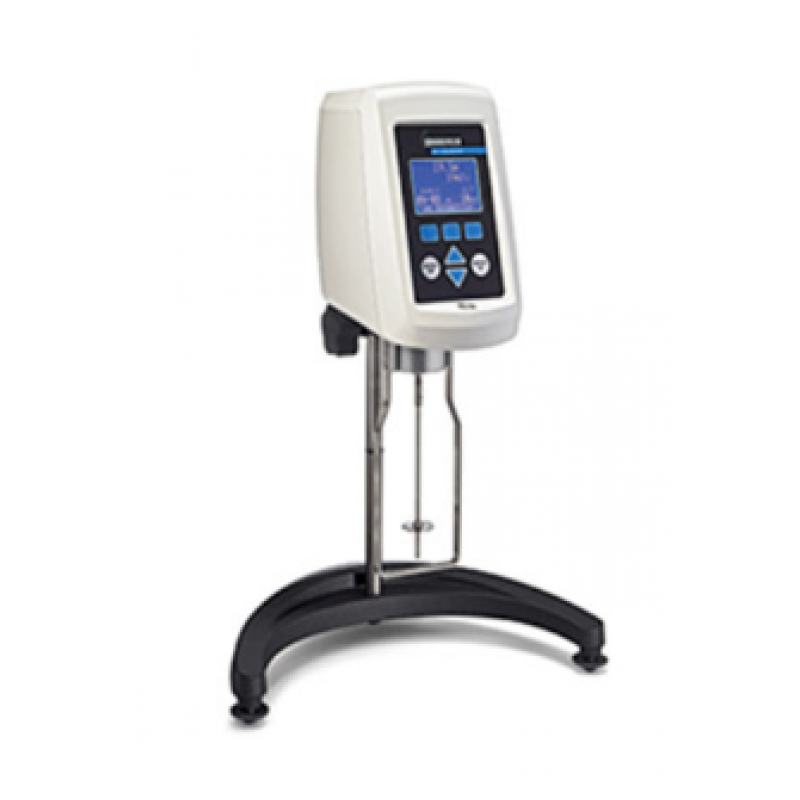

Viscometers DV 1

Features Specification SPEEDS MODEL Min. Max. RPM Number of Increments DV1MLV 1† 2M .3-100 18 DV1MRV 100†† 13M .3-100 18 DV1MHA 200†† 26M .3-100 18 DV1MHB 800†† 104M .3-100 18 Should Include: Instrument 6 spindles (RV/HA/HB) or 4 spindles (LV) Lab Stand (Model A) Carrying Case VISCOSITY RANGE cP (mPa•s) † 1 cP achieved with UL Adapter accessory. 15 cP on LV with standard spindles. ††Minimum viscosity is achieved with optional RV/HA/HB spindle. B=1 Billion     M=1 million    cP=Centipoise     mPa·s=Millipascal·seconds Technical Specification PC Interface for use with optional Wingather SQ Software and output connection to printer Available as a choice of multiple languages: English, French, German, Portuguese, Russian, Spanish Simplified user interface for more direct access to features Direct access to time measurement function (time to torque, time to stop) Temperature off-set capability to ±5°C Senses and displays continuously Viscosity (cP or mPa·s) Temperature (°C or °F) (OPTIONAL) % Torque Speed (rpm) Spindle used Torque measurement accuracy: 1% of full scale range Repeatability: 0.2% of full scale range Select all functions from user-friendly keypad Choice of 18 rotational speeds Optional RTD temperature probe Auto-zero function to ensure precision torque measurement Auto-range function to define full scale range (FSR) for all spindle/speed combinations Warns of under- or over-range torque measurement condition Printing to Dymo® capability Timed Stop feature to measure viscosity at precise user specified time interval Time to Torque feature to measure the time interval for sample to reach user defined torque value Compatible with all Brookfield accessories NIST traceable viscosity standards available
