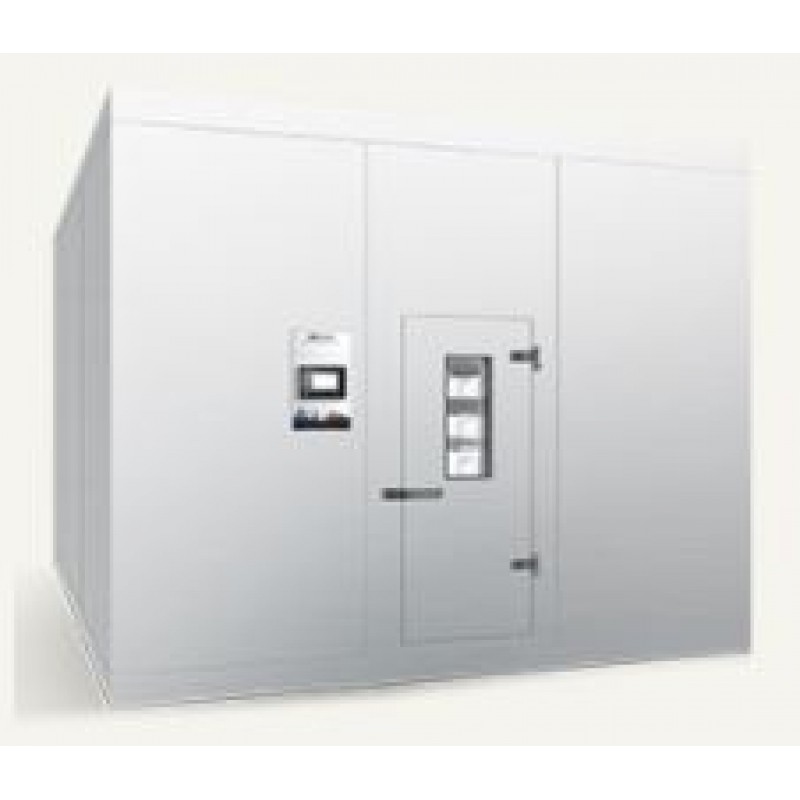

WALK-IN COOLING CABINET (2 °C TO 8 °C)
Product Details :
The Walk-In Cooling Cabinets / cold rooms are designed according to ICH guidelines, WHO, MCA and USFDA requirements to maintain uniform conditions. They are superior in airflow distribution, temperature control technology, cabinet construction and are manufactured as per cGMP regulations.
Standard Features:
- Pre-fabricated doubled walled modular panels with 80 mm thick PUF insulation
- Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
- Floor panels having extra reinforcement to sustain the movement and sample load inside the chamber
- Interior illumination for working area
- Multi pane vacuum sealed observation glass window
- Heavy-duty door hinges and latches to maintain a secure and uniform seal
- Racks & trays – Stainless Steel with adjustable height
- 65 mm Port Hole with rubber seal to insert sensors for validation purpose
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant having state of art by-pass system for continuous run of compressor
- PLC based control system with 7” colour touchscreen HMI.
- Web based online monitoring
- Complete with IQ, OQ, PQ, Documents, Operations and Maintenance manuals
- Works on 23V AC single phase 50Hz
Smart air distribution system
- A separate supply and return duct for ensuring uniformity of set conditions
Safety & Alarms
- Safety controller sensor to cut off the supply in case of overshoot and undershoot of temperature giving audio visual alarm
- Door Opening alarms
- Emergency bell switch provided inside the chamber
- Special door lock provided to open the door from inside
- All the alarms are events are logged in the software
Optional Features:
- 21 CFR Part 11 compliance window based communication software for data management
- Stand by refrigeration system
- Scanner 8 point temperature complete with sensors and printer interface and data storage facility
- Mobile Alert system
- Rockwool insulated panels
- Door Access Security system
Specifications:
Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
GMP Model(G) : Inside S.S. 304 & outside S.S. 304
Temperature Range : 2 °C to 8 °C
Temperature Accuracy : ± 1.0 °C
Temp Uniformity : ± 2.0 °C
Documentation:
Complete with IQ, OQ, PQ documents
Operation and Maintenance manuals
Training to end users
Technical Data:
| Models | Capacity | Dimensions in Meters | Max No. of Trays | ||
|---|---|---|---|---|---|
| Cu.ft/Ltrs. | Internal | ||||
| W | D | H | |||
| TC 40 S/G | 4,000 | 2.0 | 1.0 | 2.0 | 8 |
| TC 60 S/G | 6,000 | 2.0 | 1.5 | 2.0 | 12 |
| TC 80 S/G | 8,000 | 2.0 | 2.0 | 2.0 | 24 |
| TC 125 S/G | 12,500 | 2.0 | 2.5 | 2.5 | 28 |
| TC 187 S/G | 18,750 | 2.5 | 3.0 | 2.5 | 36 |
| TC 232 S/G | 23,250 | 3.1 | 3.0 | 2.5 | 40 |
| TC 320 S/G | 32,000 | 3.7 | 3.5 | 2.5 | 66 |
| TC 450 S/G | 45,000 | 3.9 | 3.9 | 3.0 | 84 |
| TC 500 S/G | 50,000 | 3.85 | 5.2 | 2.5 | 100 |
| TC 800 S/G | 80,000 | 6.4 | 5.0 | 2.5 | 200 |
| TC 960 S/G | 96,800 | 6.1 | 5.29 | 3.0 | 240 |
Note: Customised sizes are available on request.
Biggest Walk in Type Cooling Chamber manufactured, installed and validated is of 11,45,700 Litres.
