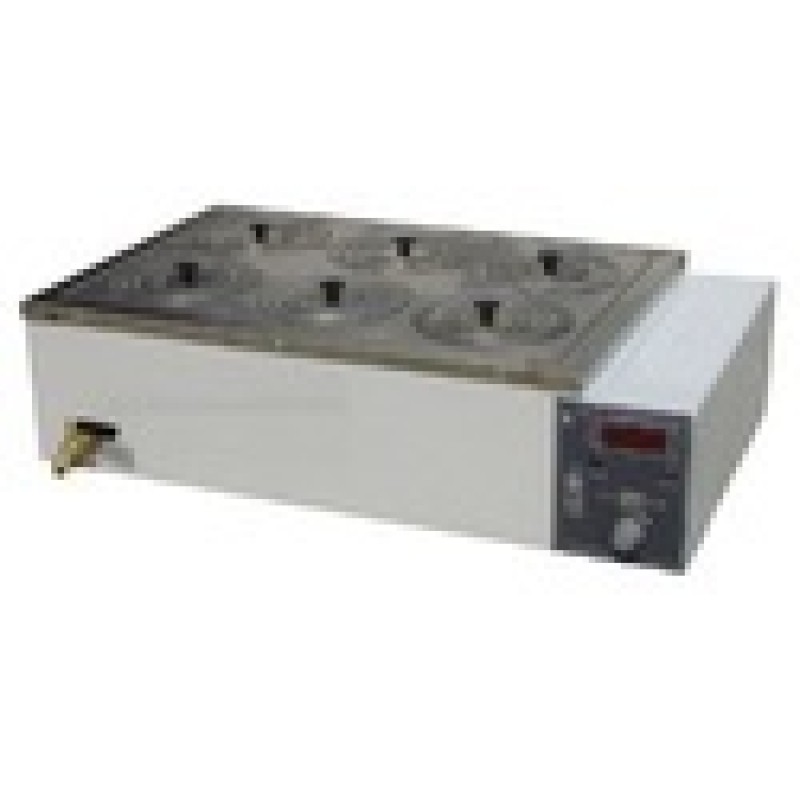

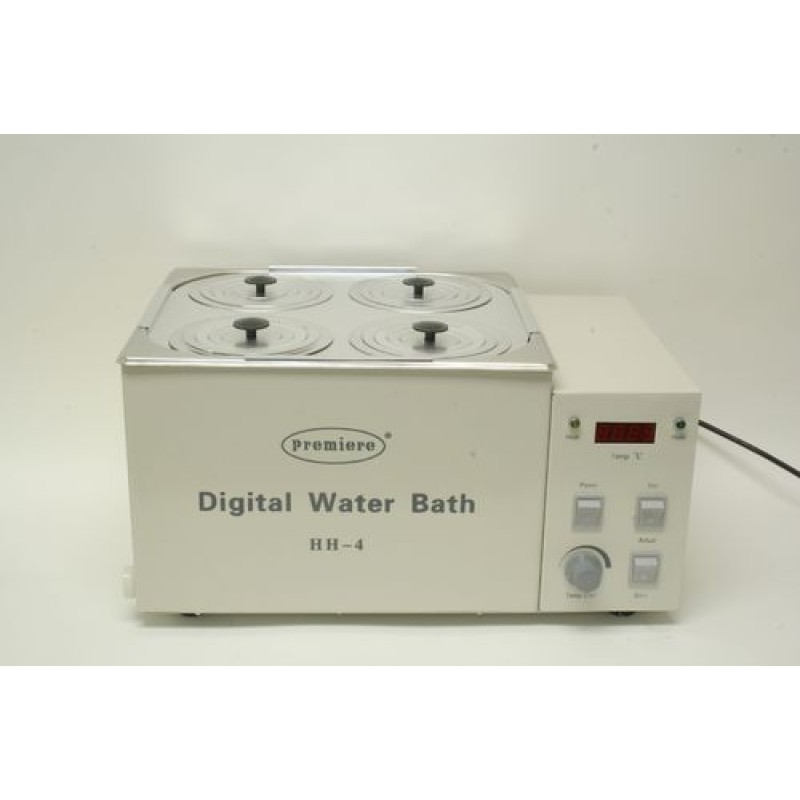

Digital Water Bath
Product Details :
Material | MS |
Shape | Rectangular |
Brand | AVM |
Automation Grade | Automatic |
Country of Origin | Made in India |
Controller | Digital PID Control |
Accuracy | +- 0.2 |
Uniformity | +- 0.5 |
Capacity | 6L |
Digital Water Bath
One can avail from us a supreme assortment of Digital Water Bath. Our range is perfect for several of application needs wide range of temperature control. Direct heating of bath by immersed incoloy heater achieves fast and accurate temperature control within ± 0.2
Applications:
- Direct heating by immersed incoloy heater provides fast heating to set temperature
- Up to Max. 99 ±0.2 Accuracy, ±0.5 Uniformity
- Digital PID controller enables 0.1 Resolution
- Over Temperature Protection, Alarm, Timer, Auto-tuning, in-built temperature calibration function
Ordering Information:
Model | ACL-06T | ACL-11T | ACL-22T | ACL-30T | |
Bath Capacity | 6L | 11L | 22L | 30L | |
Temperature | Heating Type | Direct heating by immersed stainless steel incoloy heater | |||
Range | ambient +5~99 | ||||
Accuracy | ±0.2 at 37 | ||||
Uniformity | ±0.5 at 37 | ||||
Control | Main Controller | Digital PID controller | |||
Wait on/off Timer | mm:ss / hh:mm / Continuous Selectable | ||||
Sensor | Pt 100 | ||||
Safety Device | Temperature | Hydraulic Over Temperature Protection | |||
| Electrical | CG Fuse | |||
Dimensions W*D*H mm | Inner | 300*155*150 | 300*240*150 | 500*300*150 | 500*300*190 |
Usable | 300*155*120 | 300*240* |
- Item Code: 58353
