Dry Bath Incubator (for 4 Blocks)

Dry Bath Incubator (for 4 Blocks)

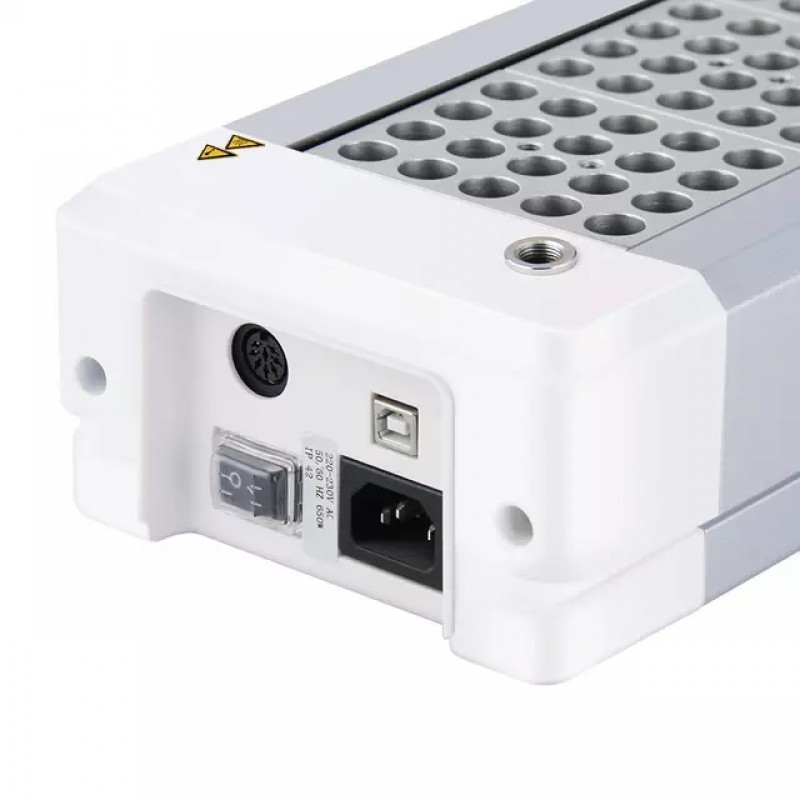

FOUR E’s Dry Bath Incubator is designed for outstanding temperature control and accuracy. Digital wheel enables accurate setting of temperature and heating time. The equipment comes with a built-in temperature sensor and also an additional external temperature sensor PT1000. When PT1000 is connected, the internal temperature sensor will disconnect automatically, enabling the temperature control and display to rely on the external temperature sensor. Interchangeable aluminum alloy blocks provide versatility in applications.


Typical Applications:

● Widely used in sample preparation, enzyme preservation, enzyme-substrate reactions, DNA amplification, electrophoresis gel degeneration and serum coagulation


Features:

● LED display for easy reading

● 3D digital wheel adjustment of time and temperature

● Adjustable temperature is up to 150°C

● High temperature stability is up to ±0.2°C

● Machined aluminum heating unit allows for highly precise control of temperature

● Included PT1000 temperature sensor allows temperature control directly in the sample vessel.

● Adjustable timing range of 1min to 99h59min

● Fixed safety circuit

● Error code display

● Various applications with different blocks

● Automatic calibration with external PT1000 temperature sensor


Specification :

Model

TC0401003

Number of blocks

4

Heat output [W]

430

Heating temperature range [°C]

room temp.+5°C-150°C

Temperature display

LED

Adjustment and display resolution [K]

0.1

Connection for ext. temperature sensor

DIN 12 878

PT 1000 variation; DIN EN 60751 Kl. A [K]

< = ± (0.15 + 0.002 x ITI)

Temperature stability within the blocks < 60°C * [±°C]

±0.5

Temperature stability within the blocks > 60°C * [±°C]

±1

Temperature Uniformity < 60°C * [K]

0.5

Temperature Uniformity > 60°C * [K]

1

Heating rate / Heat up time with

external sensor * [K/min]

4

Set-up plate material

Aluminium alloy

Set-up plate dimensions [mm]

96x304

Fixed safety circuit [°C]

180

Timer

Time setting range

1min - 99h59min

Dimensions (W x H x D) [mm]

152 x 86 x 465

Weight [kg]

7.5

Permissible ambient temperature [°C]

5 - 40

Permissible relative humidity

80%

Protection class according to DIN EN 60529

IP 21

Voltage [V]

200-240/115

Frequency [Hz]

50/60

Power input [W]

412
