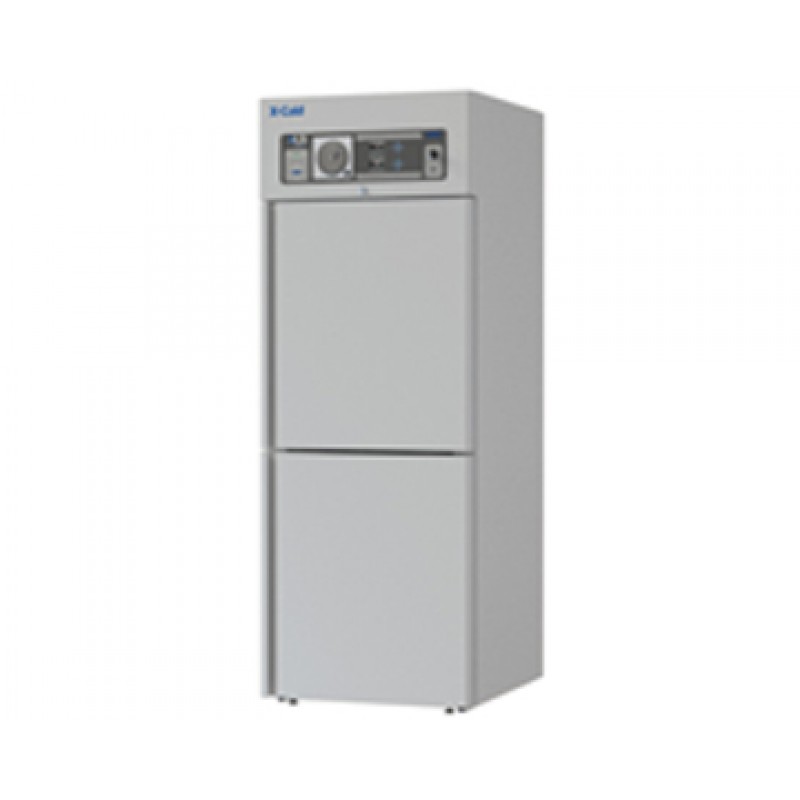

Dual Cooling Combined Chambers

Product Details:

• UPPER COMPARTMENT TEMPERATURE: +5°C
• LOWER COMPARTMENT TEMPERATURE: -20°C


Temperature Range

• 1° COMPARTMENT: from 0°C to +15°C
• 2° COMPARTMENT: from -10°C to -21°C


Refrigeration System

• The air cooled refrigeration system has been designed to maintain the set temperature in elevated ambient temperature environments.
• CFC-free refrigerants.
• Fan Based System.


Control System

• Key Pad, multi-functional display, microprocessor controller.
• Password protected security system for power, temperature & alarm settings.

• Independent operating temperatures and high/low limit alarm.
• Temperature adjustments in increments of 0.1°C.


Electrical System

• Automatic voltage compensation to flatten voltage fluctuations.
• Built-in surge suppressor minimizes effect of incoming voltage spikes.

• Solid state relay.
• Circuit breaker. Protects compressor and power supply circuits.
• Built in Automatic Delay Restart (ADR). Ensures on line quality after power failure, decreasing power load, protecting the compressor.


Alarm System

• Intelligent Self-Diagnosis (I.S.D) system controller monitors system parameters and displays alarm status in real time.
• Audible & visual alarms alert you to the following:

• Temperature Changes
• Door ajar


Cabinet Construction

• Moulded, closed cell, CFC-free urethane insulation.
• External MOC Coated or in SS Based on request.

• Stainless Steel Interior.
• Access port (25.4mm) diameter, with cap.

• Heavy-duty swivel casters.
• Insulated inner door with independent door hinges and lock.


Optional:

• Inventory system.
• Data Logging with software..
