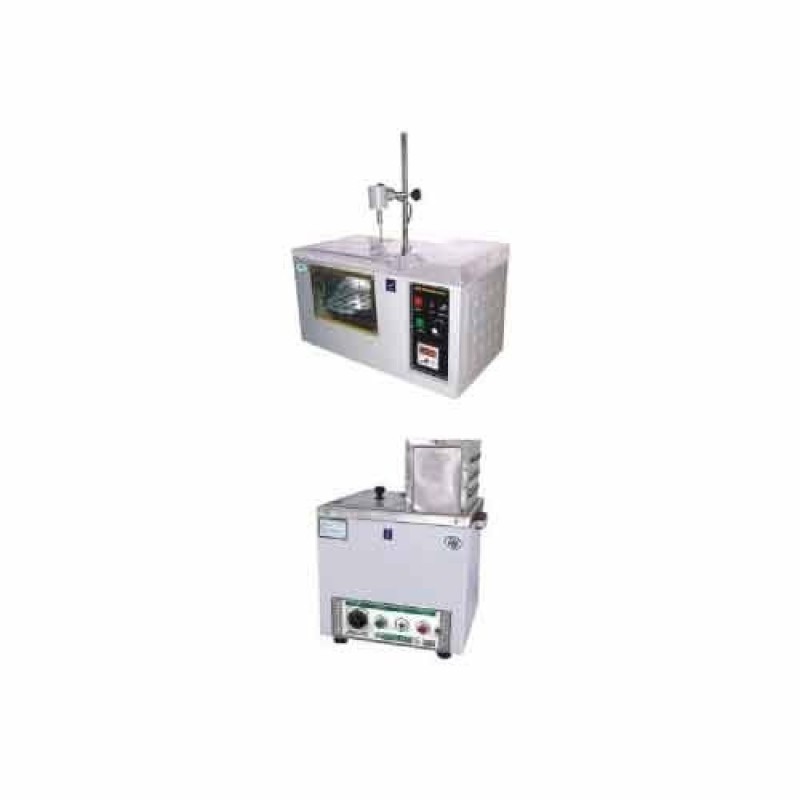

High Precision Water Bath
Product Details :
Features:
- Small or Large capacity tank.
- Heater element. Top cover & other walled parts with 304 grade S. Steel for years of Life & ease of daily clean.
- S. Steel 304 grade perforated Diffuser plate.
- Drain Plug made of Brass duly Nickled on the back of the Bath
- Full feature with Digital Temp. Controller / Indicator & Microprocessor Based PID Temperature Controller (on customer request)
- With 1/20 HP High speed motor with Regulator or 1/70 HP Pump Stirrer with steel shaft for better Circulation.
- Stability up to 0.5°C or better.
- Better Mineral/Glass wool Insulation to keep surface Temp. comfortable.
- Sealed glass window / Toughened glass at front for observation of material.
- Optional : Arrangement for using the Bath for Abbe Appts. Butyrometer apparatus with cycle Nozzle & speed regulator.
Technical Specifications:
| Model | UTS 1.06 F | UTS 1.06 G for Abbe Water Bath Butryometer Appts. |
| Capacity "L" | 28 Ltrs. | 4 Ltrs. Approx |
| Heater Wattage "W" | 2.0 KW | 500 Watts |
| Shelves/ Diffuser Plate | 1 | 1 |
| Dimensions (mm) | 430 x 240 x 265 | 300 x 250 x 175 |
| Bath Opening | S.S Plain Lid | S.S Plain Top Cover & Lid |
Technical Parameters:
- Control Panel : Mains & Load Indicator, Mains Switch & Motor Switch, Temperature Controller
- Temperature Range : Ambient to 95 °C
- Temperature Stability : -0.5°C or better
- Housing Material : CRC / Mild Steel Sheet with Powder Coated
- Interior Tank S.S 304 grade Tank duly Sealed (Leak Proof)
- Interior Tank : S. Steel 304 grade water Tank duly sealed leak proof
- Insulation : Glass wool/ Mineral Wool
- Power Consumption : 220/230V, AC Supply - 10% 50Hz
- Duty Cycle : Continuous ( Do check water level as per test requirement )
- Digital Resolution : 0.1°C
- Digital Sealing : 0.1°C
