Refrigerated Liquid Bath
Product Details :
Voltage (V) | 220 V |
Frequency (Hz) | 50 Hz |
Phase | Three Phase |
Purity (%) | 99 % |
Material | Stainless Steel |

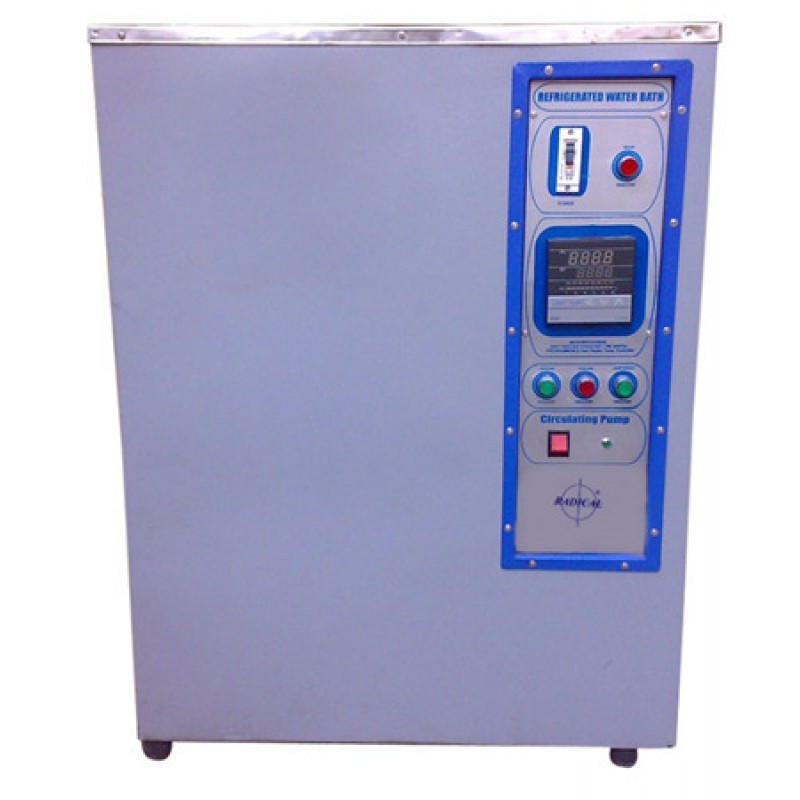

Constant Temperature Refrigerated Liquid Bath RSTI-141:
Outer body is made of thick mild steel duly powder coated painted and inner chamber is made up of 304 grade stainless steel. Lid is also double walled properly insulated and is with locking facility. Whole unit is mounted on sturdy angle iron frame the cooling coils are brazes to the outer side of S.S. chamber thus ensuring perfect and uniform cooling. Insulation is done with thick glass wool to prevent any temp. loss. For attaining the temp. below ambient, the refrigeration is done through CFC free hermetically sealed compressor and & for attaining the temp. above ambient, heating is done with immersion type heating element. Constant Temperature Refrigerated Liquid Bath RSTI-141 Series Fitted with stirrer for temperature uniformity throughout the chamber. Temperatures range is from 5 DegreeC to 90 DegreeC is controlled by dual Display Microprocessor PID Digital Temperature Indicator cum Controller with a accuracy of +0.5 DegreeC digital temp. To work on 220/230volts AC supply. The unit is also fitted with a FHP PUMP for circulating the cooled liquid to an external source such as condenser coils, etc.
