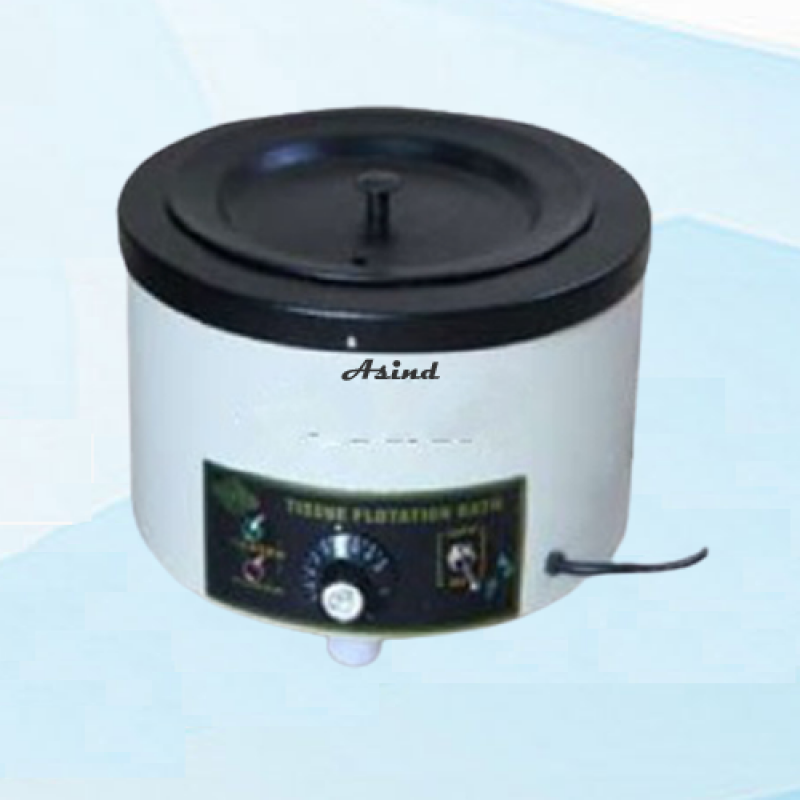

TISSUE FLOATING BATH
Product Details:
Double walled Tissue floatation water bath is used for precise control of different samples at constant temperature most ideal for Histological, chemical, clinical and bacteriological laboratories used to stretch and dry cut tissues.
CONSTRUCTION:-
The double walled unit is most suitable for wrinkle free tissue specimen; inside is made up of aluminum and outside of Mild steel sheet duly painted. Temperature range from ambient to 80˚C with an accuracy of ±0.5˚C is controlled by Bi-Metallic hydraulic capillary type thermostat. Complete with indicator, cord and plug to work on 220/230 volts A.C Supply
TECHNICAL SPECIFICATION INFORMATION:-
INNER CHAMBER SIZE (MM) | 210 MM X 75 MM | 250 MM X 125 MM |
---|---|---|
TEMPERATURE CONTROLLER | Bi-Metallic hydraulic capillary type thermostat | |
TEMPERATURE RANGE | Ambient to 80˚C | |
TEMPERATURE ACCURACY | ± 0.5˚C | |
INNER CHAMBER | Aluminum (SS-304) | |
HOUSING MATERIAL | Mild steel sheet duly powder coated | |
POWER SUPPLY | 220/230 volts A.C supply, 50Hz |
