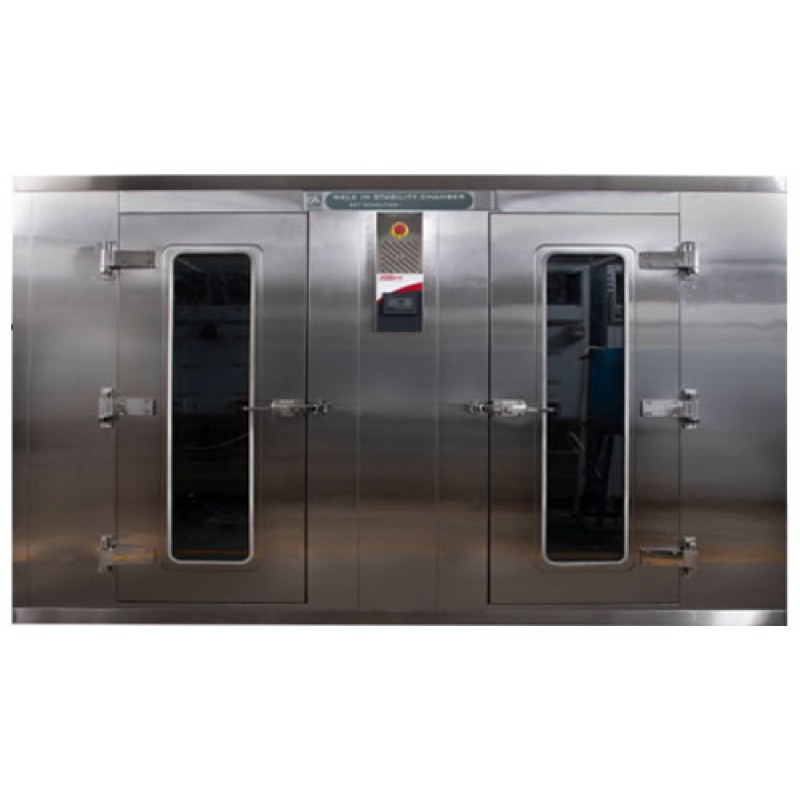

WALK - IN COLD CHAMBER / COOLING CABINET

Product Details:

Technical Specifications
 Temperature Range : 2°C to 8°C Accuracy :< ± 1.0°C Uniformity :< ± 2.0°C*

Models	Cap. in liter	Internal size in mm	External size in mm	Rack Qty	Tray Qty	Tray size in mm Load	Connected
AO/WCC-400	4000	2000WX1000DX2000H	2160WX1490DX2200H	2	10	730WX625DX30H	2.05 KW
AO/WCC-600	6000	2000WX1500DX2000H	2160WX1990DX2200H	4	20	600WX625DX30H	2.05 KW
AO/WCC-800	8000	2000WX2000DX2000H	2160WX2490DX2200H	4	20	850WX625DX30H	2.75 KW
AO/WCC-1000	10000	2000WX2500DX2000H	2160WX2990DX2200H	6	30	720WX625DX30H	2.75 KW
AO/WCC-1200	12000	2000WX3000DX2000H	2160WX3490DX2200H	6	30	885WX625DX30H	3.75 KW
AO/WCC-1600	16000	2000WX4000DX2000H	2160WX4490DX2200H	8	40	905WX625DX30H	4.95 KW
AO/WCC-2000	20000	2000WX4000DX2500H	2160WX4490DX2700H	8	48	905WX625DX30H	5.95 KW
AO/WCC-2500	25000	2300WX4500DX2500H	2460WX4990DX2700H	10	60	815WX750DX30H	5.95 KW
AO/WCC-3000	30000	4000WX3000DX2500H	4160WX3490DX2700H	12	72	885WX625DX30H	6.75 KW
AO/WCC-4000	40000	4000WX4000DX2500H	4160WX4490DX2700H	16	96	905WX625DX30H	6.75 KW
AO/WCC-5000	50000	4500WX4500DX2500H	4660WX4990DX2700H	20	120	815WX725DX30H	6.75 KW

*Measured with high accuracy data-logger at sample storage area with standard Set Point
* Custom built Chambers are available in any dimensions and capacities.
Standard Chamber Features & Provisions:
Construction: PCGI/SS304/SS316 Tongue & Groove type panels with PUF density of 40Kg/m3 with thickness of 80 mm.
Sample Storage:
Racks: Heavy Duty SS304 Frame secured strongly to chamber walls for strength.
Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations.
Door: PUF Insulated door with Viewing Window (of Double Layered Toughened Glass), mounted with imported hinges & locks.
Door Operation: Passcode protected door operation - from software & HMI
Control System:
Ergonomically designed Control Panel.
Ferrule printed wiring.
Advanced PLC Program with built in processor-based Auto Tuning.
4.3” HMI Color LED Display.
Built in Redundancy & Safety.
Advanced High Accuracy “Transmitter based sensors” with output of 4-20 mA.
Temperature Control:
Efficient, Reliable, Time tested & Trustworthy Refrigeration Design.
Built in redundancy with PLC based Auto Change Over during power outage, component failure
Safety: Dedicated Thermostats for all key points: Chamber High Temperature, Utility High Temperature
PLC Safety Cut Off for Temperature: Low, Lower & High safety cut off.
Human Safety: “Person Trap” button provided inside the chamber, which triggers Audio Visual alarm. The button enables the trapped person to come out even if the door is physically locked from outside
Emergency Stop: Button provided from outside.

Walk - In Cold Chambers:
Pharmaceutical & allied industries demands accurate standards to be followed when it comes to and storage environments.
Cold Chambers, also known as Cooling Cabinets/ Pharma Refrigerator are an integral part of Stability studies within the Pharmaceutical & allied industries.
Storage in a controlled environment allows the indication of how safe products are to use and their optimum storage temperature.
Thus, manufacturers and distributors of pharmaceutical medicine, need to comply with regulations when it comes to the storage of raw materials, Refrigerated Products, Batch samples & other samples, working standards, reference standards, vaccines, reagents,
and other critical items-such as Blood & Blood products, & are also called as Blood Bank Refrigerator (BBR).
Close monitoring of the temperature is mandatory as the nature of goods stored in Cooling Cabinet/ Cold Chamber is such that if temperature is not carefully maintained & monitored it may reach a critical point, so temperature fluctuations must be avoided at all costs.
Allyone has a long & rich experience of manufacturing state of the art Cooling Cabinets/ Cold chambers which are the most trustworthy equipment maintaining the exact set point, assuring absolute uniformity as they are meticulously designed & built for optimum performance keeping in mind environment friendly aspects: use of CFC Free gases & low on power consumption.
Allyone provides professional services (software) for continuous monitoring of “Hot” & “Cold” spot based on Rational Studies/Mapping.
