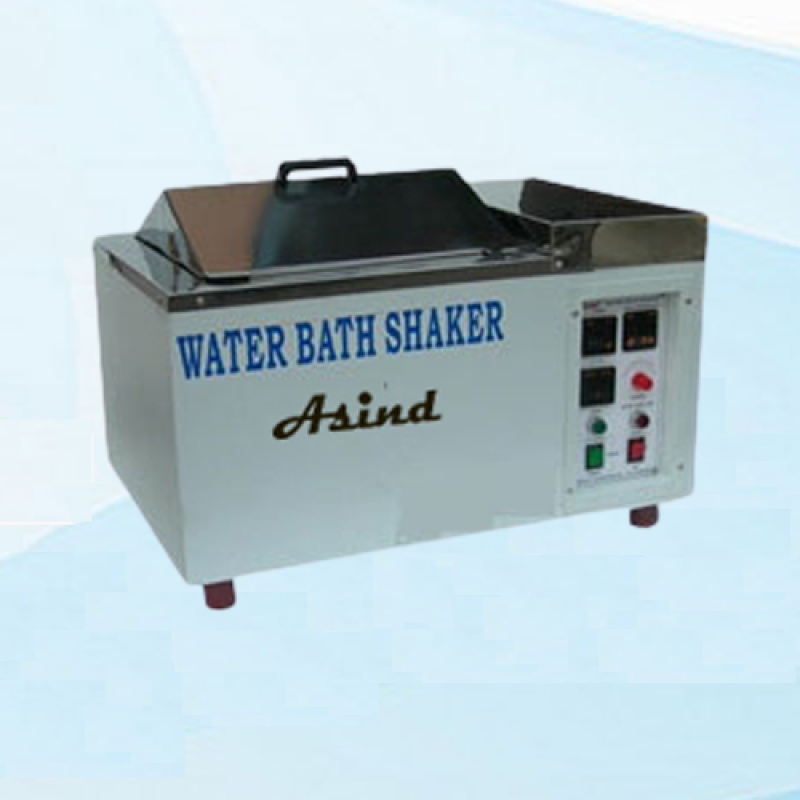

WATER BATH SHAKER
WATER BATH SHAKER
Product Details:
Designed for studies of tissue metabolism, Enzymes and proteins coagulation or other experiments requiring shaking of subject’s matters at the constant speed under control temperature environment.
It is a double walled unit inside made of thick S.S. Steel (SS-304 grade) and outer is made of Mild steel sheet duly powder coated. The lid is made of S.S steel sheet prevents falling of condensed water droplets on the specimens. Heating is achieved through a immersion type heater and the temperature is controlled a geared variable speed meter. Shaking speed range is between 40 to 140 cycles per minute. The shaking tray can be either hold test tubes or flask of 25ml or 50ml or 100ml or 250ml or 500ml or 1000ml (as per order of user). Supplied complete with one shaking tray, cover, cord and plug, to work on 220/230 volts A.C supply. Available with heating arrangement only (having temperature range from ambient to 100˚C).
TECHNICAL SPECIFICATION INFORMATION:-
INTERNAL DIMENSIONS (LXBXD)
275X275X75 MM
275X275X150 MM
405X300X150 MM
Capacity
8 ltrs
12 ltrs
18 ltrs
Heating Load
2.5 KW (2.0 KW + 0.5 KW)
Temperature Range
Ambient to 100˚C
Controller
Microprocessor based PID Digital Temperature Indicator-cum-Controller
Display
Digital LED with set value (SV) process value (PV)
Heater type
Industrial grade immersion heater
Temperature Accuracy
±0.5 ˚C
Temperature Sensor
RTD (Pt-100)
Shaking Speed
40 to 140 cycles/minute
Diffuser Shelf
Heater protective perforated cover made of stainless steel
Regulator
Solid state electronic relay with protective heat sink
Power supply
220/230 volts A.C. Supply,50 Hz
Optional:
• Microprocessor based PID Digital Temperature Indicator-cum-Controller with Automatic Digital Minute Timer which starts automatically
when set/desired value of temperature is attained. When the set time period is over the heaters
switched off automatically and unit sounds a Buzzer alerting the user that the process is complete.
• Full body is made of S.S. Sheet (SS-304 grade).
