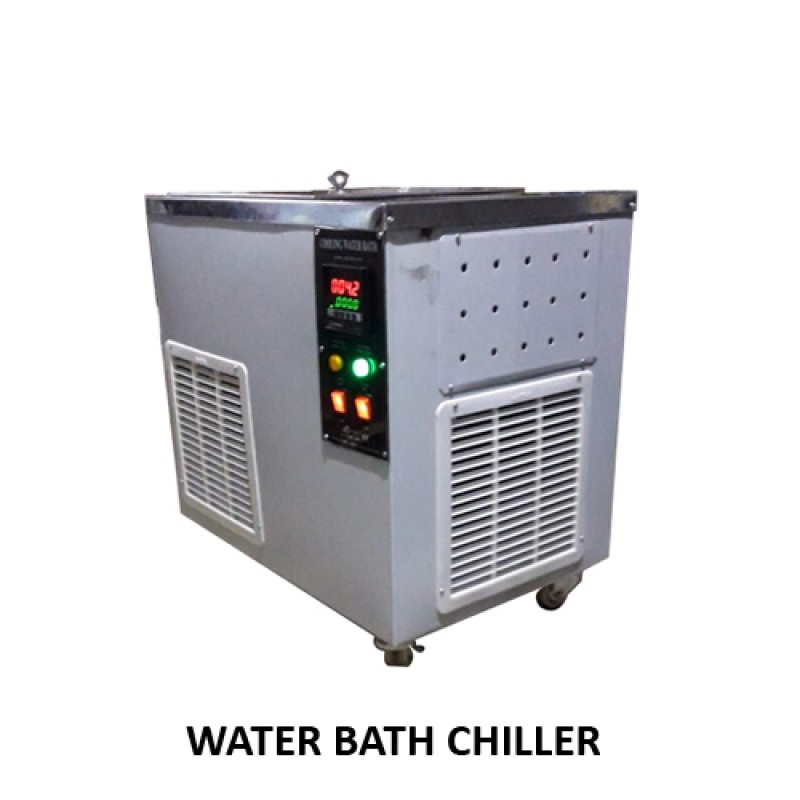

Water Bath Chiller

Product Details :

Model: SSI-138

Outer body is made of thick mild steel sheet duly powder coated painted and inner chamber is made up of 304 grade Stainless Steel. Lid is also double walled properly insulated and is with locking facility. Whole unit is mounted on a sturdy angle iron frame The cooling coils are brazed to the outer side of Stainless Steel chamber thus ensuring perfect and uniform cooling. Insulation is done with thick glass wool to prevent any heat loss. For attaining the temp. below ambient, the refrigeration is done through CFC FREE hermetically sealed compressor and & for attaining the temp. above ambient, heating is done with immersion type heating element .Fitted with stirrer for temperature uniformity throughout the chamber. Temperature range is from 5°C to 90°C is controlled by microprocessor PID Controller with an accuracy of ±0.3°C. To work on 220/230 volts AC supply. The unit is also fitted with a FHP PUMP for circulating the cooled liquid to an external source such as condenser coils, etc.

Chamber Size (W x D x H)

• 500 x 250 x 250 mm
