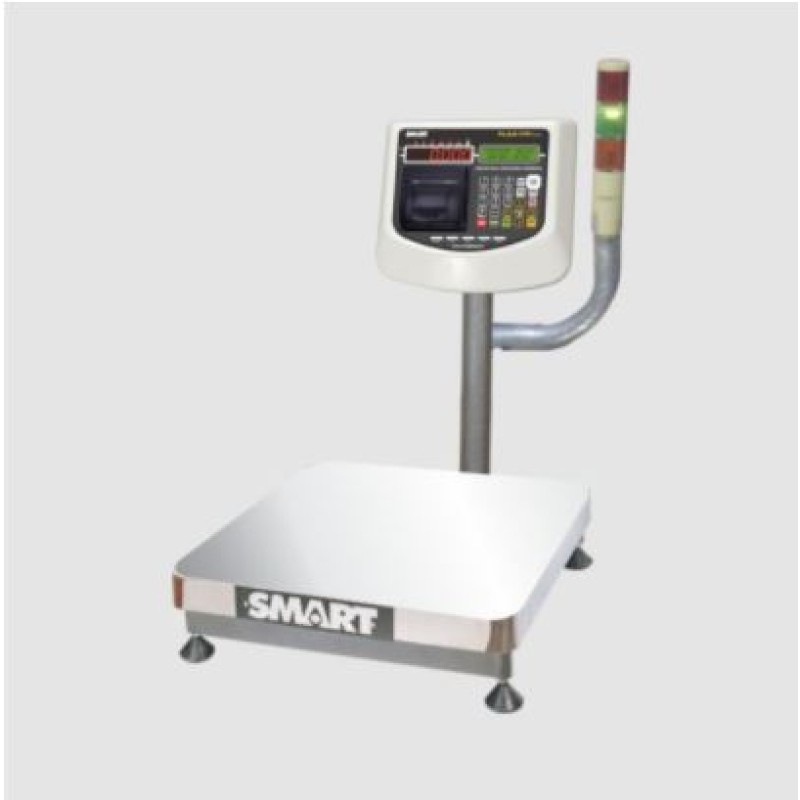

Bench ITP Solution

Description

Features

• Interface to Inbuilt Thermal Printer / Scanner
• Weighing Scale / Data Processing Capability
• Dispense Mode / Shipper Mode Slips
• 5000 Shipper Memory, Upgradeable to 20,000
• Real Time Clock with Backup support
• Check Weighing / Counting / Accumulation modes
• Fully Programmable with Front Panel
• Labels support for Shipper with Barcoding
• Bi Directional RS232 / USB for data output
• Option for Ethernet, 4~20 mA, PLC / ERP Integration
• Export Data to Pen Drive Excel Format
• Auto Batch Numbering / Manual Batch

Features & Specifications

• Bright RED LED for weight display.
• Easy to clean ABS enclosure; resistant to harsh and corrosive environments.
• Suitable for use on the table, column or wall.
• 16 x 2 Line, Backlit character LCD for operator dialogues/messages
• Full Mobile Keypad alphanumeric data entry without external keyboard
• 8 direct function keys.
• Internal resolution 300,000 counts.
• Display resolution Upto 99,000 increments.
• Menu driven operation & configuration.
• Programmable data files and print formats.
• Real time clock with battery back up.
• Keyboard calibration.
• Upgradeable Firmware by user
• Support for Connecting Inbuilt Thermal Printer
• Connectivity to DMP Printer (Programming Interface for ESC/POS, EPSON,IBM Compatible)
• 3 Color Tower Lights for High Low Okay

Database

• Supplier Master, Customer Master, Formulations or any other database required
• Storage option of up-to 100,000 Records of data
• Storage of data is time stamped
• Customized Report on Printer / USB Pen Drive - Excel Format

IO Section

• 3 serial communication ports for PC, Printer PLC
• USB Host - Pen Drive connectivity upto 4GB
• 16bit High precision 4-20mA / 0-10V Output for connection to PLC
• GSM/GPRS Connectivity Option(Integration with FTP/HTTP/SMTP) Protocols.
• Read Data through Barcode Scanners
• 101 Key PS2 External Keyboard Port
• 4 Potential Free Relay Outputs for direct loads upto 5Amps(Opto-Isolated Circuit)

Application Software

• Pharmaceutical - Tare Gross Net (Dispensing Application)
• Pieces / Quantity Counting, Labeling Reporting
• Formulation / Ingredient Control
• Weigh Bridge / Vehicle Management
• Shipper Scale
• Product Dosage System (batch Control) - Loading / Unloading
• Agricultural Produce Collection
• POS Systems

Customizing The Product

• The development area inside the indicator allows to us to easily customize your application software.
• The software can be easily upgraded through remote support using a PC and internet connection
• All features mentioned above are optional so that you can choose and pay for what you need.
• An overall product which make complete economic sense.
• MOST IMPORTANT - Designed and developed in India by SMART. Be SMART and CHOOSE Smart
• Catalog and Manual for Pharma Dispensing Application attached with mail

For more information and your queries you may write to us with your specific requirement
