Buoyancy Balance - 6000 g

Product Details:

Minimum Order Quantity	1 Unit
Frequency	50 to 60 Hz
Voltage	220 to 240 VAC
Phase	Single Phase
Diameter	200 mm
Depth	200 mm
Wire Mesh	1.70 mm

As with any porous material, the value obtained for the particle density of an aggregate will depend on the method of test and apparatus used. Different particle sizes with a sample often have different particle densities. The term particle density expressed in Mg/m³ is numerically equal to the specific gravity.

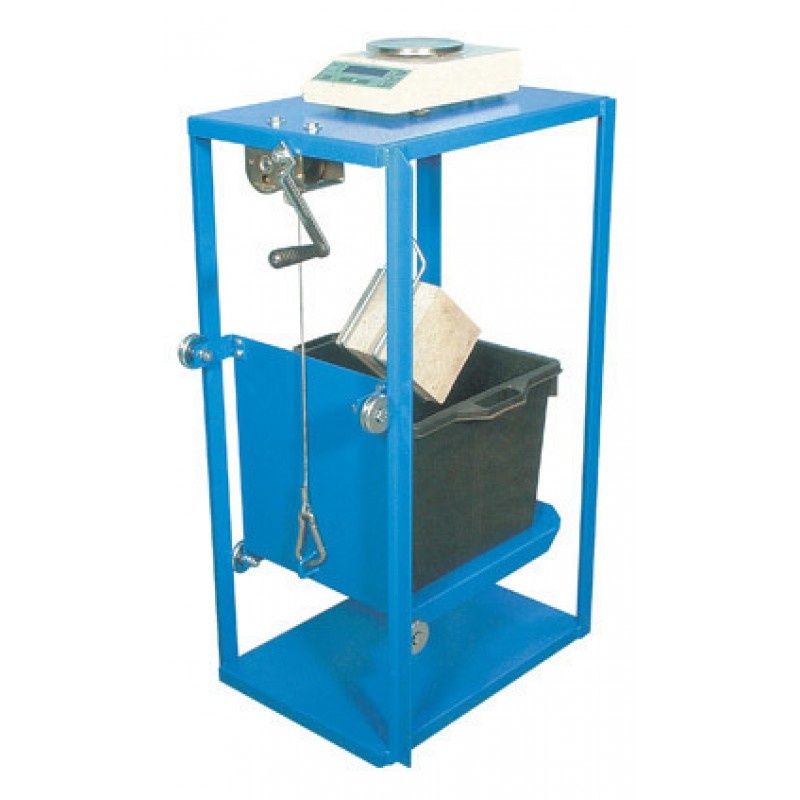

Various methods, depending upon the type and size of the material to be tested, are specified in standards for testing aggregate.Method for aggregate between 63 mm and 5 mm.The buoyancy balance system consists of a rigid support frame incorporating a water tank mounted on a platform.A mechanical lifting device is used to rais the water tank through the frame height immersing the specimen suspended below the balance.The balance supplied may also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory.Buoyancy Balance, 6000 g x 0.1 g, Supplied with the frame, water tank, and suspension hook. For 220 - 240 VAC, 50-60 Hz, I ph.with wire basket with handle for relative density 200 mm Dia x 200 mm deep, 1.70 mm wire mesh.
