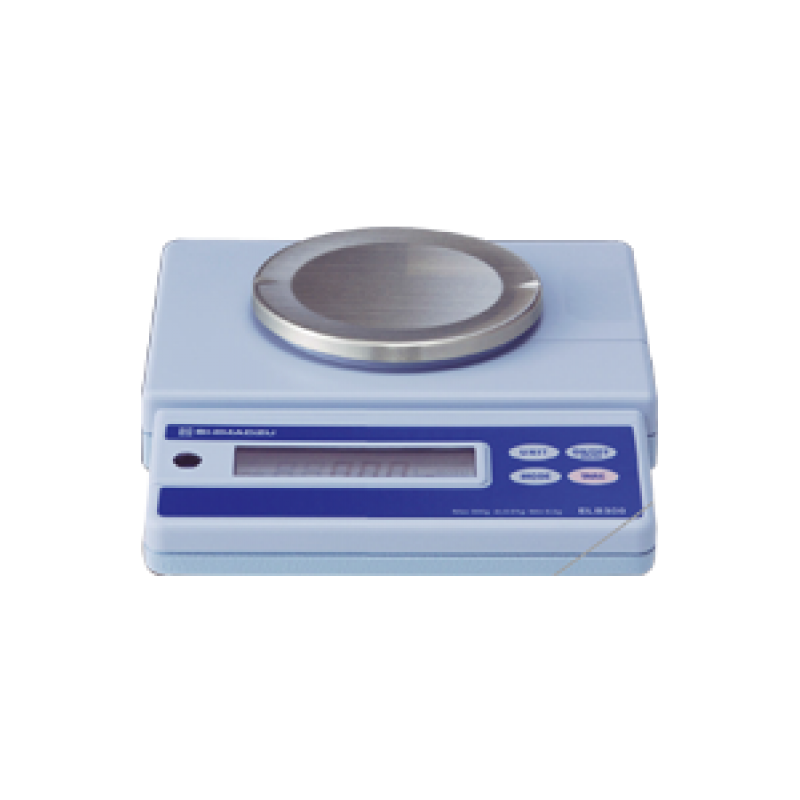

ELB Series
Product Details :
High resolution type | Standard resolution type | |||||||||
Model | ELB120 | ELB200 | ELB300 | ELB600 | ELB1200 | ELB2000 | ELB3000 | ELB12K | ELB600S | ELB6000S |
Capacity | 120 g | 200 g | 300 g | 600 g | 1200 g | 2000 g | 3000 g | 12 kg | 600g | 6000g |
Minimum display | 0.01 g | 0.01 g | 0.01 g | 0.05 g | 0.1 g | 0.1 g | 0.1 g | 1 g | 0.1 g | 1 g |
Repeatability (standard deviation) | σ≤0.01g | σ≤0.01g | σ≤0.01g | σ≤0.05g | σ≤0.1g | σ≤0.1g | σ≤0.1g | σ≤1g | σ≤0.1g | σ≤1g |
Linearity | ±0.01g | ±0.01g | ±0.02g | ±0.05g | ±0.1g | ±0.1g | ±0.2g | ±1g | ±0.1g | ±1g |
Taring range | 0 g to capacity | |||||||||
Ambient temperature | 5−40°C | |||||||||
Functions | Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero-tracking, Auto power off | |||||||||
Unit conversions | g, kg, ct, oz, ozt, dwt, GN, Hong Kong tael, Singapore tael, Taiwan tael, mom | |||||||||
Data output | DATA I/O (For electronic printer, RS-232C interface) | |||||||||
Pan size | 110mm dia | 170×130mm | ||||||||
Dimensions (approx.) | 185W×215D×55H mm | |||||||||
Weight (approx.) | 1.25 kg (without batteries) | |||||||||
Power source | 6 AA batteries, or AC (optional AC adapter required) | |||||||||
Standard accessories | Battery holder, In-use protective keypad cover |
