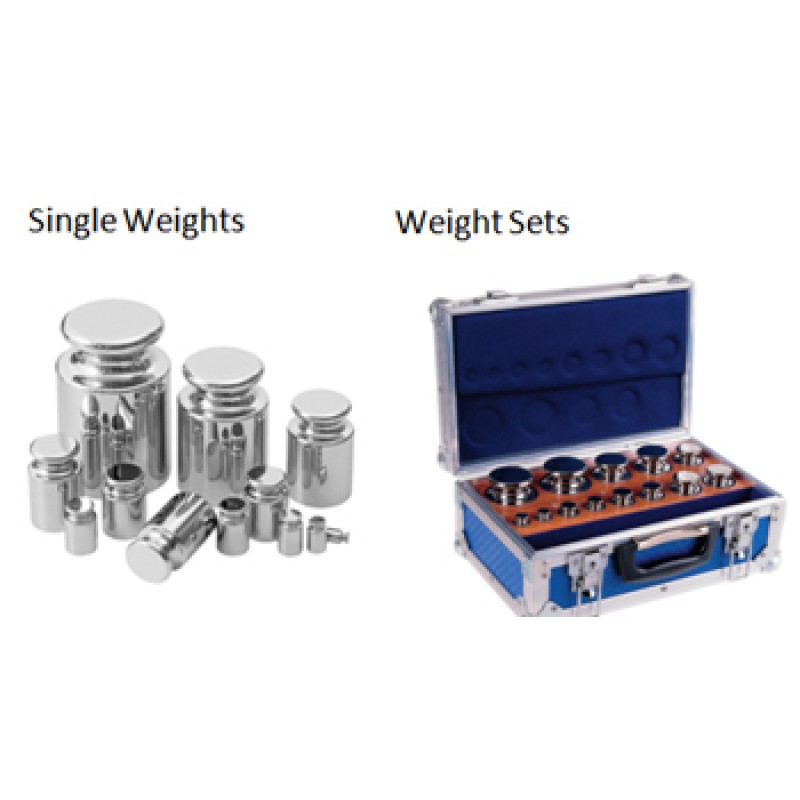

Single Weights
ACZET TRUE WEIGHTS ARE
- Outstanding cost performance ratio
- Quick handling time
- Modern calibration methods allow exact calibration results and quick processing times.
- Calibrated by RRSL/ERTL or NABL Accredited Laboratory Internationally valid.
- According to OIML - R111 Standards.
- Complete Service Ranging from 1mg to 100kg.
- E2 to F2 Class weights with or without Certification.
- Higher Accuracy Metrological Weights
Here’s how to find the right test weight
Just determine the number of digits specified for your weighing instrument’s resolution, then read off the particular accuracy class that your test weight must have on the graph provided below.
The weight value of your test weight should be more than 80% of the maximum capacity of your weighing instrument.
Use the following chart to determine whether you need an individual weight or a weight set
by comparing the nominal mass values
Example: Suppose your weighing instrument has a capacity of 2,200 g and a readability of 0.01 g. This
yields 220,000 digi ts, which cor respond to a class E2 test weight . Since
80% of 2,200 g is 1,760 g, you need to round it to a weight value of 2,000 g.
- E2 STAINLESS STEEL WEIGHTS (SINGLE)
E2 STAINLESS STEEL WEIGHTS (SINGLE) | Part No. | Mass No. | Tolerance | Wooden Box | Certificate | 117-01 | 1g | +.03mg | 117-01-100 | 100-001 | 117-02 | 2g | +0.04mg | 117-02-100 | 100-002 | 117-03 | 5g | +0.05mg | 117-03-100 | 100-003 | 117-04 | 10 g | +0.06mg | 117-04-100 | 100-004 | 117-05 | 20 g | +0.08mg | 117-05-100 | 100-005 | 117-06 | 50 g | +0.10mg | 117-06-100 | 100-006 | 117-07 | 100 g | +0.16mg | 117-07-100 | 100-007 | 117-08 | 200 g | +0.3mg | 117-08-100 | 100-008 | 117-09 | 500 g | +0.8mg | 117-09-100 | 100-009 | 117-11 | 1 kg | +16mg | 117-11-100 | 100-010 | 117-12 | 2 kg | +3.0mg | 117-12-100 | 100-011 | 117-13 | 5 kg | +8.0mg | 117-13-100 | 100-012 | 117-14 | 10 kg | +16mg | 117-14-100 | 100-013 | 117-15 | 20 kg | +30mg | 117-15-100 | 100-014 | 117-16 | 50 kg | +80mg | 117-16-100 | 100-015 | 117-18 | 100 kg | +160mg | 117-18-10 | 100-016 | | F1 STAINLESS STEEL WEIGHTS (SINGLE) : | Part No. | Mass No. | Tolerance | Wooden Box | Certificate | 126-01 | 1g | +0.10mg | 126-01-100 | 100-017 | 126-02 | 2g | +0.12mg | 126-02-100 | 100-018 | 126-03 | 5g | +0.16mg | 126-03-100 | 100-019 | 126-04 | 10g | +0.20mg | 126-04-100 | 100-020 | 126-05 | 20g | +0.25mg | 126-05-100 | 100-021 | 126-06 | 50g | +0.3mg | 126-06-100 | 100-022 | 126-07 | 100g | +0.5mg | 126-07-100 | 100-023 | 126-08 | 200g | +1.0mg | 126-08-100 | 100-024 | 126-09 | 500g | +2.5mg | 126-09-100 | 100-025 | 126-11 | 1kg | +5.0mg | 126-11-100 | 100-026 | 126-12 | 2kg | +10mg | 126-12-100 | 100-027 | 126-13 | 5kg | +25mg | 126-13-100 | 100-028 | 126-14 | 10kg | +50mg | 126-14-100 | 100-029 | | | | | | F2 STAINLESS STEEL WEIGHTS (SINGLE) | Part No. | Mass No. | Tolerance | Wooden Box | Certificate | 137-01 | 1g | +0.3mg | 137-01-100 | 100-030 | 137-02 | 2g | +0.4mg | 137-02-100 | 100-031 | 137-03 | 5g | +0.5mg | 137-03-100 | 100-032 | 137-04 | 10 g | +0.6mg | 137-04-100 | 100-033 | 137-05 | 20 g | +0.8mg | 137-05-100 | 100-034 | 137-06 | 50 g | +1.0mg | 137-06-100 | 100-035 | 137-07 | 100 g | +1.6mg | 137-07-100 | 100-036 | 137-08 | 200 g | +3.0mg | 137-08-100 | 100-037 | 137-09 | 500 g | +8.0mg | 137-09-100 | 100-038 | 137-11 | 1 kg | +16mg | 137-11-100 | 100-039 | 137-12 | 2 kg | +30mg | 137-12-100 | 100-040 | 137-13 | 5 kg | +80mg | 137-13-100 | 100-041 | 137-14 | 10 kg | +160mg | 137-14-100 | 100-042 |
|
- E2 STAINLESS STEEL WEIGHTS (SETS)
E2 STAINLESS STEEL WEIGHTS (SETS): | | | | Part No. | Mass Wet.. | Certificate | Tags:
