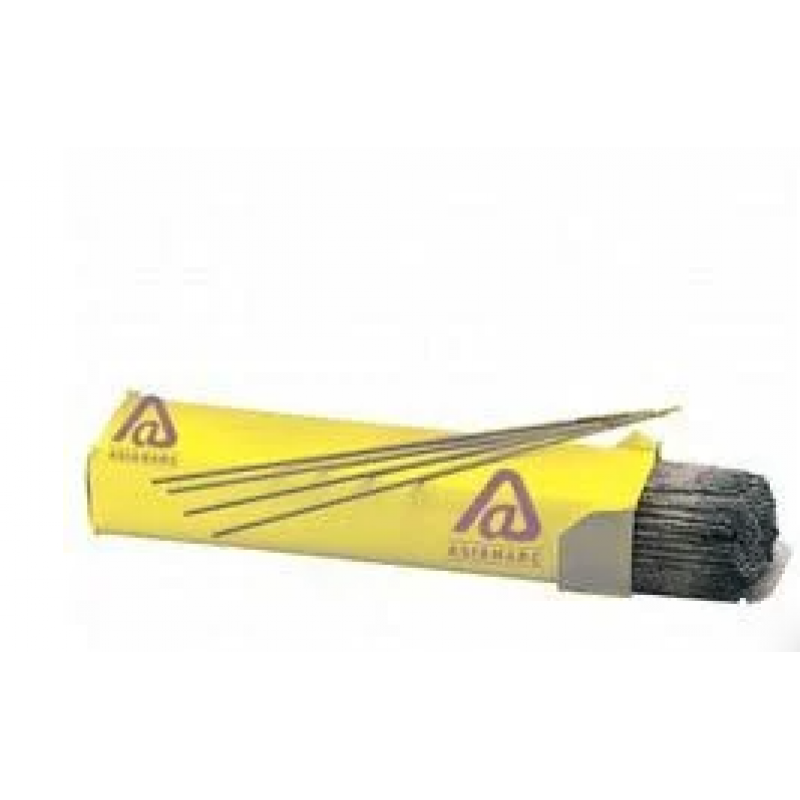

Welding Electrode
Product Details:
Welding Electrode: Our organization is counted among the topmost manufacturers and suppliers of a wide range of Electrode that are used for general purpose mild steel welding. These are manufactured using superior quality raw material that are procured from the trusted and reliable vendors of the industry. Our customers can purchase these from us, at industry leading prices all over the nation.

Conforms to classification:
IS-814/04 : EB 4212X
AWS A 5.1 E 6013
Description & Application:

Our offered electrodes are widely used for welding efficiently on both AC or DC power and are also ideally suited for fabrication of components during the construction of bridges and other electrical products. These are made of steels that conforms to IS:2062-99 Gr.B, IS-1875-92 Class I & IA standards. The weld deposit are of radiographic quality that are easy to detach and gives medium penetration. Easy to operate in all positions, these are further used for framing of Truck Frames Bodies, Mobile Constructions, Ship Building, Pipelines, Steel Structures, Storage Tanks and many more.


Welding Precautions :


Electrodes, if moist, should be baked at 140°C (approx.) for 1 hour
Uniform length of the arc and travel speed helps to obtain welds with better profile and smooth finish
Avoid handling of electrodes with moist or greasy hands
Clean the surface of the weld joint properly
Tip colour : Blue
Type of Current : A.C. or D.C. (±)
RDSO Railways as per IRSM 28/02 in class A2

Chemical Composition:


Carbon : Max.-0,1%
Manganese : Max.-0.65%
Silicon: Max.-0.60%
Physical Properties of Weld Metal :


UTS in N/mm2 : 410 (min)
Yield Strength in N/mm2: 330 (min)
Elongation (on 5D G.L.): 26 (min)
Reduction in area: 50 (min)
Impact in Joules : 47 at + 0°C (min)
