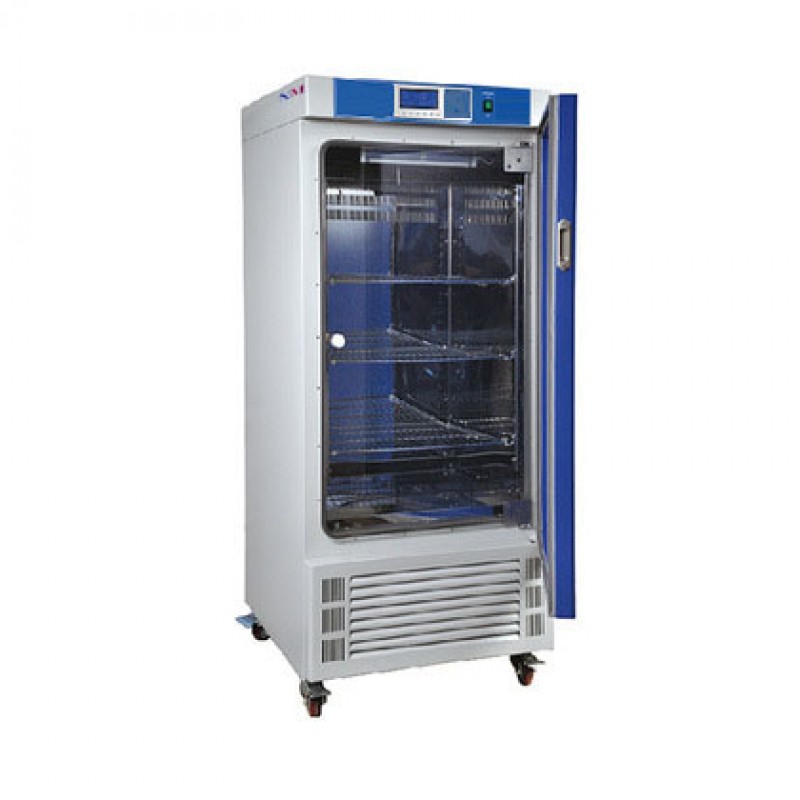

ZONOTECH SEED GERMINATOR MODEL - ZSG13

TECHNICAL SPECIFICATION :

• Designed for conducting various experiments on a variety of seeds under different parameters of temperature. humidity etc.
• It is of double-wall construction. The inner chamber is made of I Q- Aluminium/Stainless Steel 304 & outer cabinet is made of MS sheet, duly pretreated & finished with epoxy powder paint.
• Insulation is provided between the inner chamber & outer body to minimize heat loss.
• The shelf position of trays is adjustable.
• The Stainless Steel water reservoir at the bottom provides 90% to 95% RH fixed humidity (not adjustable).
• Temperature from 5°C to 5O°±1°C is controlled by . Microprocessor Digital temperature indicatorcum controller.
• An inner transparent acrylic door is provided to view the germination of seed inside the chamber without opening the door, thus no temperature/humidity loss.
• Air circulation ensures uniform temperature & humidity inside the chamber.
• A heater is provided for temperature control inside the chamber. The CFC free compressor is placed below the chamber.
• The Control panel is fitted with a voltmeter, indicators, Microprocessor DigitalTemp.Controller, switches, etc.
